Description
Product Description

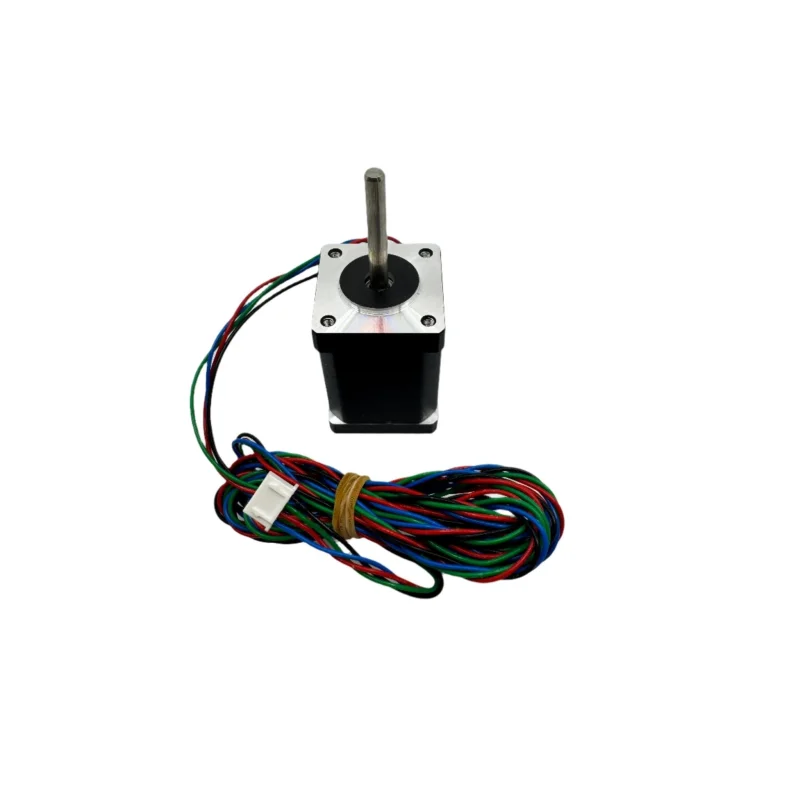

The LDO-35STH52-2004(S35) NEMA 14 stepper motor is a high-performance, compact motor designed for precision motion control applications. With its robust construction and precise step angle, this motor delivers reliable and accurate performance in a variety of industries. This version uses a 35mm shaft.
Key Specifications
- Frame Size: NEMA 14 (35mm)
- Phase: 2-Phase Bipolar
- Step Angle: 1.8 5%
- Rated Current: 2A/Phase
- Holding Torque: 0.4 Nm
- Resistance: 1.34 Ohms 10% @ 20C
- Inductance: 2.1 mH
- Rotor Inertia: 40 gcm
- Shaft: Single Front Shaft
- Shaft Length: 35mm
- Front Shaft Flat Length: 30mm
- Front Shaft Diameter: 5mm
- Connection: Plug for JST-XHP-4, Black
- Terminal Number: 4
- Wire Harness Length: 200010mm, AWG24, UL1332
- Insulation Class: H (180C)
Benefits
- High Torque: Delivers strong holding torque for precise positioning.
- High Resolution: 1.8 step angle for fine movement control.
- Temperature Resistance: Operates reliably in various temperature environments.
- Low Inertia: Enables rapid acceleration and deceleration.
- Compact Design: Ideal for space-constrained applications.
- Durable Construction: Ensures long-lasting performance.
Applications
- 3D Printing
- CNC Machining
- Robotics
- Medical Equipment
- Automation Systems
Note: For optimal performance, it is recommended to use a suitable stepper motor driver and power supply.
