Description
Description

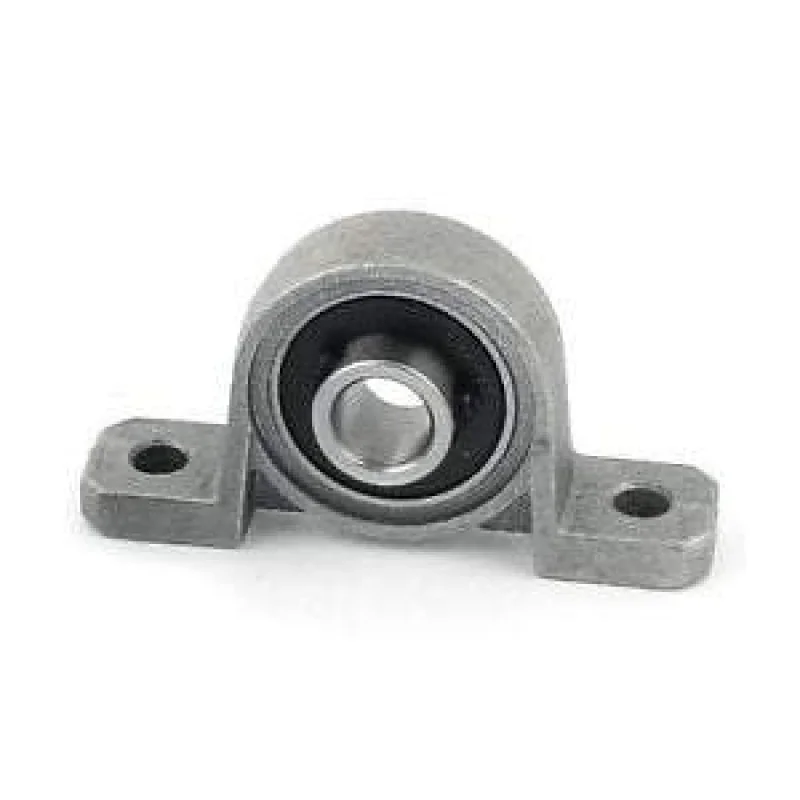

The KP08 Pillow Block Bearing is a mounted insert bearing designed for supporting 8 mm shafts in mechanical and motion systems. It features a zinc alloy housing with an integrated deep groove ball bearing, secured using set screws for firm shaft locking. The unit provides self-aligning capability, allowing minor angular adjustments during installation to maintain smooth rotation. Built for consistent performance and easy mounting, it ensures reliable operation in rotating assemblies. Suitable for CNC machines, automation systems, and light-duty mechanical applications.
Features
- 8 mm bore insert bearing for standard shafts
- Zinc alloy housing for durability and corrosion resistance
- Integrated deep groove ball bearing design
- Set screw locking mechanism for secure shaft fixation
- Self-aligning capability for installation flexibility
- Two-bolt mounting base for stable attachment
- Low friction rotation for smooth performance
- Pre-assembled unit for easy installation
- Compact and lightweight housing design
- Suitable for moderate load applications
- Reliable operation under continuous use
- Compatible with linear shafts and rotating rods
Specifications
- Bore Diameter: 8 mm
- Bearing Type: Deep Groove Ball Bearing
- Housing Material: Zinc Alloy
- Locking Mechanism: Set Screw Lock
- Mounting Type: Two-Bolt Base
- Alignment Type: Self-Aligning
- Inner Ring Fixation: Grub Screws
- Outer Diameter (Bearing): 22 mm
- Housing Length: 55 mm
- Housing Width: 13 mm
- Mounting Hole Distance: 42 mm
- Operating Type: Rotational Motion Support
- Load Type: Radial Load
