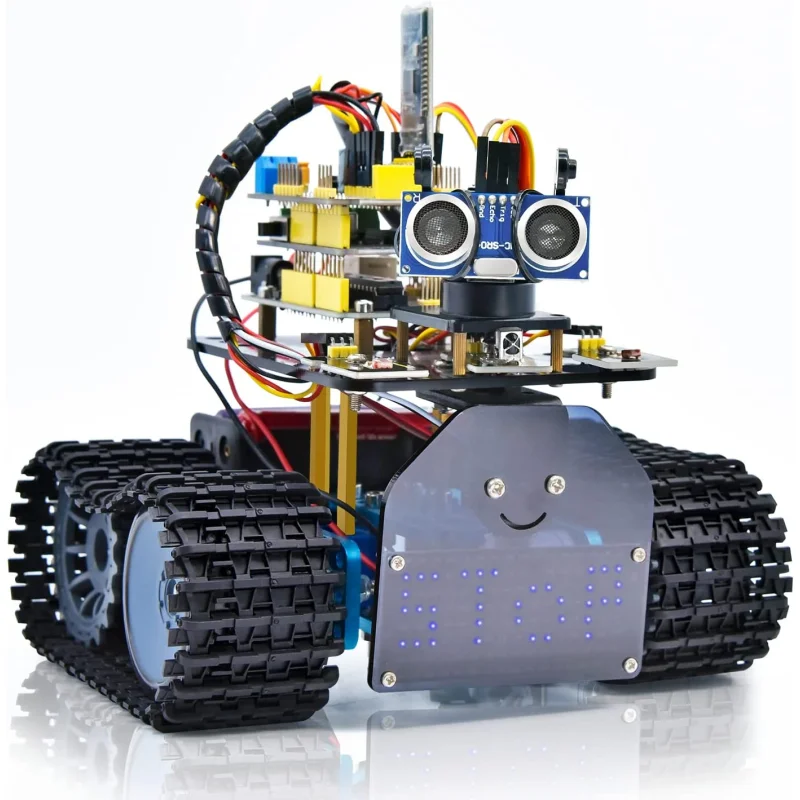

Keyestudio Arduino Tank Robot Car Kit Bluetooth IR Control

Description

Description

The Keyestudio Tank Robot Car Kit is an Arduino-compatible robotics kit designed for learning embedded systems, electronics, and programming. It integrates multiple sensors and control modules, including ultrasonic, infrared, and light detection, enabling autonomous navigation and interactive control. Built with a durable aluminum alloy structure and metal gear motors, it ensures stable performance and reliable operation. The kit supports both Arduino IDE and Mixly block programming, making it suitable for structured learning and prototyping. It is ideal for robotics education, STEM projects, and advanced experimentation.

Kit Contents

• 1 Keyestudio UNO R3 Control Board (Arduino compatible)
• 1 Motor Driver Shield (HR8833 / L298P or similar)
• 1 Sensor Shield (V5 or similar)
• 1 Bluetooth Module (HC-06 or similar)
• 1 IR Receiver Module
• 1 IR Remote Controller
• 1 Ultrasonic Sensor (HC-SR04)
• 1 Line Tracking Sensor Module
• 1 Obstacle Avoidance Sensor Module
• 1 Flame Sensor Module
• 1 Photoresistor (Light Sensor)
• 1 816 LED Dot Matrix Module
• 1 Servo Motor
• 2 DC Gear Motors (Metal motors for tank drive)
• 2 Tank Tracks (Caterpillar belts)
• 2 Drive Wheels (Tank wheels)
• 1 Fan Module (for fire extinguishing function)
• 1 Battery Holder (18650 batteries)
• 1 Power Cable
• 1 USB Cable
• Acrylic / Metal Chassis Parts (Tank structure)
• Motor Mounting Brackets
• Jumper Wires (Male-to-Male / Male-to-Female / Female-to-Female)
• Connection Cables
• Screws (Assorted Sizes)
• Nuts
• Copper Standoffs
• Spacers
• Screwdrivers (Tools)

Features

• Arduino UNO R3 compatible control system

• Dual H-bridge motor driver (L298P / HR8833)

• Bluetooth module for wireless control (iOS and Android)

• Infrared remote control interface with receiver module

• Ultrasonic sensor for distance measurement and obstacle detection

• Line tracking sensor for autonomous path following

• Obstacle avoidance sensor for real-time navigation

• Flame sensor with fan module for fire detection applications

• 816 LED matrix display for status indication

• Light sensor (photoresistor) for light-following functionality

• Metal DC gear motors for high durability and torque

• Tank track drive system for enhanced terrain handling

• Sensor shield for easy expansion and wiring

• No soldering required for assembly

• Compatible with Arduino IDE and Mixly programming platform

Specification

• Operating Voltage: 5V DC
• Input Voltage: 712V DC
• Maximum Output Current: 2A
• Maximum Power Dissipation: 25W (T=75C)
• Motor Type: DC Gear Motor (Metal)
• Motor Speed: 200 RPM @ 5V
• Motor Drive Mode: Dual H-Bridge (L298P)
• Control Method: Bluetooth, IR Remote, Autonomous Modes
• Ultrasonic Detection Range: 2400 cm
• Ultrasonic Detection Angle: <15
• Infrared Control Distance: Up to 10 m
• Bluetooth Control Distance: Up to 50 m
• Display Type: 816 LED Dot Matrix
• Battery Type: 18650 Li-ion (holder included)
• Programming Support: Arduino IDE, Mixly

Links

• Link to code and library from keystudio

Tutorials

• KEYESTUDIO KS0555 Join me in crafting a Mini Caterpillar Tank Robot V3.0
