Description
Description

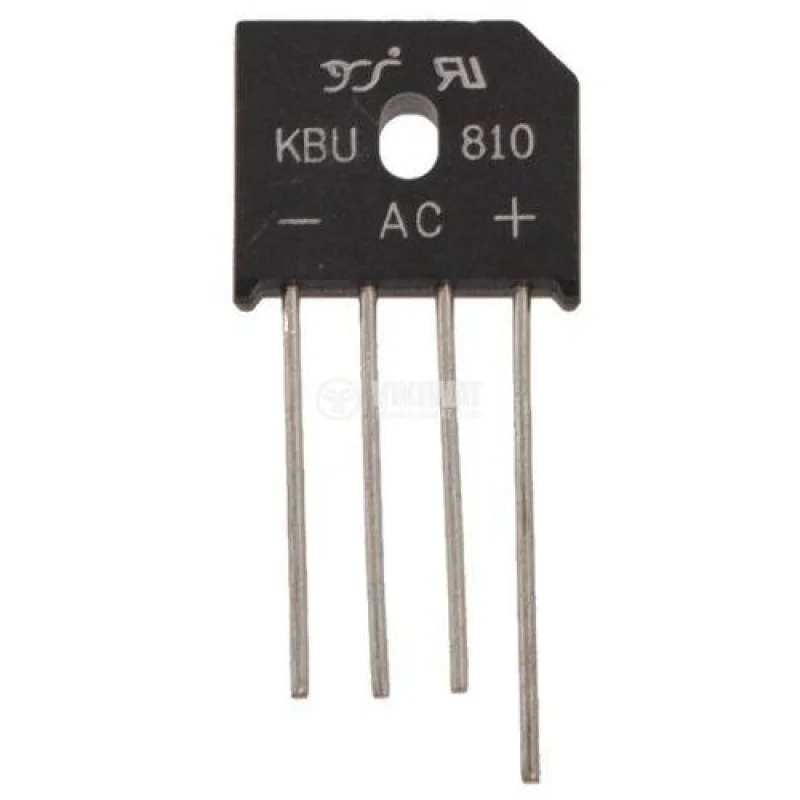

The KBU810 is a single-phase full-wave bridge rectifier designed for converting AC input into DC output in power supply circuits. It integrates four rectifier diodes in a single compact KBU package, simplifying circuit design and reducing board space. With a 1000V repetitive reverse voltage rating and 8A average forward current capability, the KBU810 is suitable for medium- to high-power rectification applications. Its high surge current handling and reliable thermal performance make it ideal for chargers, adapters, industrial supplies, and general AC-DC conversion systems.
Features
- Full-wave bridge rectifier configuration
- Converts AC to DC efficiently
- Integrated four-diode bridge structure
- High reverse voltage rating (1000V)
- Average forward current up to 8A
- High surge current capability (200A)
- Low forward voltage drop
- Compact KBU package
- Through-hole mounting design
- Suitable for power supply circuits
- Reliable thermal performance
- Easy PCB integration
- Ideal for chargers and rectification stages
- Durable industrial-grade operation
Specifications
- Model: KBU810
- Device Type: Single Phase Full Wave Bridge Rectifier
- Maximum Repetitive Reverse Voltage (VRRM): 1000V
- Average Forward Rectified Current (IF): 8A
- Peak Forward Surge Current (IFSM): 200A
- Forward Voltage Drop (Typical): 1.1V per diode
- Rectification Type: Full-Wave Bridge
- Polarity Configuration: Bridge Rectifier
- Package Type: KBU
- Mounting Type: Through-Hole
- Operating Temperature Range: -55C to +150C
- Application Type: AC to DC Rectification
Links
- 3D Model
- Datahsheet
Tutorials
- Single Phase Full Wave Controlled Rectifier with R Load | Power Electronics | Lecture 43
