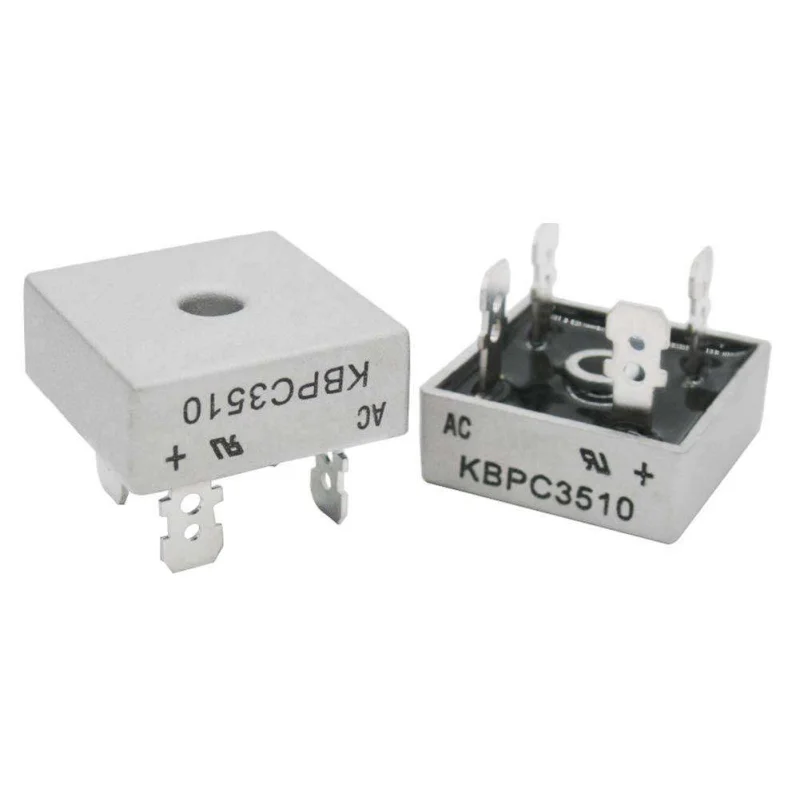

KBPC3510 Bridge Rectifier Diode 35A 1000V Single Phase

Description

Description

The KBPC3510 is a high-current single-phase bridge rectifier designed for efficient AC to DC conversion in power electronics applications. It integrates four high-power rectifier diodes in a robust metal package, enabling reliable operation under heavy current loads. With a 35A average forward current rating and 1000V repetitive reverse voltage capability, the KBPC3510 is ideal for demanding industrial power supplies, motor drives, battery chargers, and inverter systems. Its metal case improves heat dissipation and supports both PCB and chassis mounting for high-power designs.

Features

• Full-wave bridge rectifier configuration
• High current handling up to 35A
• High reverse voltage rating (1000V)
• Integrated four-diode rectifier design
• Metal case for improved thermal dissipation
• High surge current tolerance (400A)
• Suitable for mains-frequency rectification
• Compact and durable industrial package
• Through-hole and chassis mount support
• Reliable power conversion performance
• Low forward voltage drop
• Ideal for high-power applications
• Easy integration into power circuits
• Rugged industrial-grade construction

Specifications

• Model: KBPC3510

• Device Type: Single Phase Bridge Rectifier

• Maximum Repetitive Reverse Voltage (VRRM): 1000V

• Average Forward Rectified Current (IF): 35A

• Peak Forward Surge Current (IFSM): 400A

• Forward Voltage Drop (Typical): 1.1V per diode

• Rectification Type: Full-Wave Bridge

• Polarity Configuration: Bridge Rectifier

• Package Type: KBPC Metal Package

• Mounting Type: Through-Hole / Chassis Mount

• Operating Temperature Range: -55C to +150C

• Application Type: High-Power AC to DC Rectification
