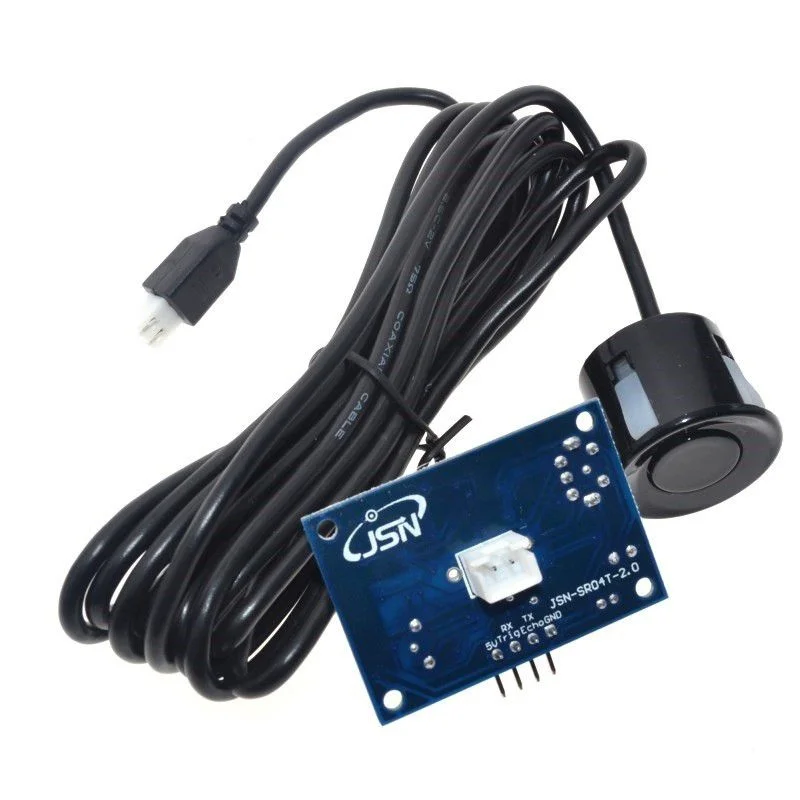

JSN-SR04T Waterproof Ultrasonic Sensor Module – 4.5m Range

Description

Description

The JSN-SR04T Waterproof Ultrasonic Sensor Module is an industrial-grade rangefinder designed for accurate distance measurement in wet or harsh environments. It features a 40kHz ultrasonic probe capable of measuring distances from 25cm up to 4.5m with a resolution of approximately 0.5cm and an angle of less than 50. The module operates at DC 3.35V with a working current of 30mA and is compatible with HC-SR04 code and interfaces. Its compact size of 4128.5mm allows easy integration in horizontal ranging, obstacle avoidance, automated control, traffic monitoring, security, and educational projects.

Features

• Ultrasonic Probe | Industrial-grade 40kHz sensor for precise distance measurement

• Measurement Range | 25cm to 4.5m with ~0.5cm resolution

• Waterproof Design | Probe resistant to rain and moisture (not submersible)

• Operating Voltage | DC 3.35V with 30mA working current

• Compatibility | Works with HC-SR04 code and interface standards

• Compact Size | 41 28.5mm module for easy integration

• Beam Angle | Less than 50 for targeted distance detection

• Temperature Range | -10C to 70C operating, -20C to 80C storage

Specification:

• Operating Voltage | DC 3.35V

• Static Current | 5mA

• Working Current | 30mA

• Material | Industrial-grade plastic and epoxy

• Module Dimensions | 41 28.5mm (L W)

• Weight | 12g

• Waterproof Rating | Probe resistant to rain and moisture (not submersible)

• Ultrasonic Frequency | 40kHz

• Measurement Range | 25cm to 4.5m

• Resolution | ~0.5cm

• Beam Angle | < 50

• Operating Temperature | -10C to 70C

• Storage Temperature | -20C to 80C

Links

• JSN-SR04T module datasheet

Tutorials

• Waterproof JSN-SR04T Ultrasonic Distance Sensor with Arduino Tutorial
