IRF520 MOSFET Driver Module 024V 5A DC Switching

Description

Description

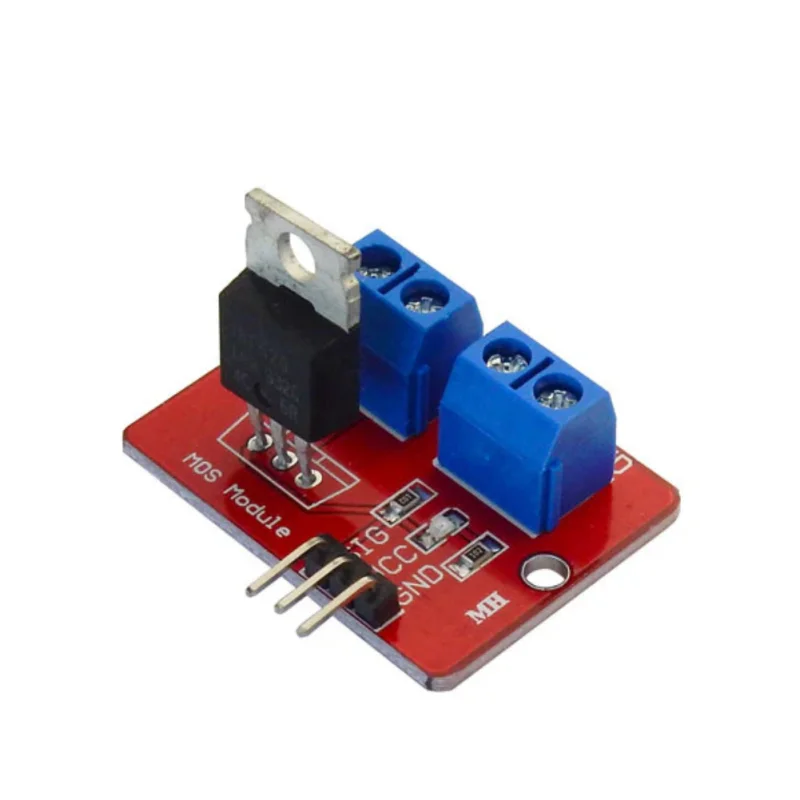

The IRF520 MOSFET Driver Module is a compact switching board designed for controlling DC loads using low-voltage digital signals from microcontrollers. It integrates an IRF520 N-channel MOSFET and supports input logic levels of 3.3V to 5V, enabling direct interfacing with platforms such as Arduino and other development boards. The module provides stable switching performance for load voltages up to 24V and currents up to 5A with proper thermal management. Built with screw terminals and an onboard indicator LED, it ensures reliable operation and easy installation. Suitable for motor control, LED dimming, and general-purpose DC load switching in embedded systems.

Features

• IRF520 N-channel MOSFET for DC load switching

• Logic-level control input compatible with 3.3V and 5V

• Load voltage support from 0V to 24V

• Load current capability up to 5A with cooling

• PWM signal support for speed and brightness control

• Screw terminal connectors for secure wiring

• Onboard LED indicator for switching status

• Compact PCB design for embedded integration

• Fast switching response for digital control applications

• Suitable for Arduino and microcontroller systems

• Stable operation under continuous switching conditions

• Easy integration in prototyping and development setups

Specifications

• Model Number: HCMODU0083

• Module Type: MOSFET Driver Module

• MOSFET Type: IRF520 N-Channel

• Control Voltage: 3.3V5V DC

• Load Voltage Range: 024V DC

• Maximum Load Current: 5A (with heat sinking)

• Recommended Current: 1A without additional cooling

• Control Signal Type: Digital / PWM

• Indicator: Onboard LED

• Connection Type: Screw Terminals

• Switching Type: Low-side switching

• Dimensions: 33.5mm 25.5mm

• Weight: 10g
