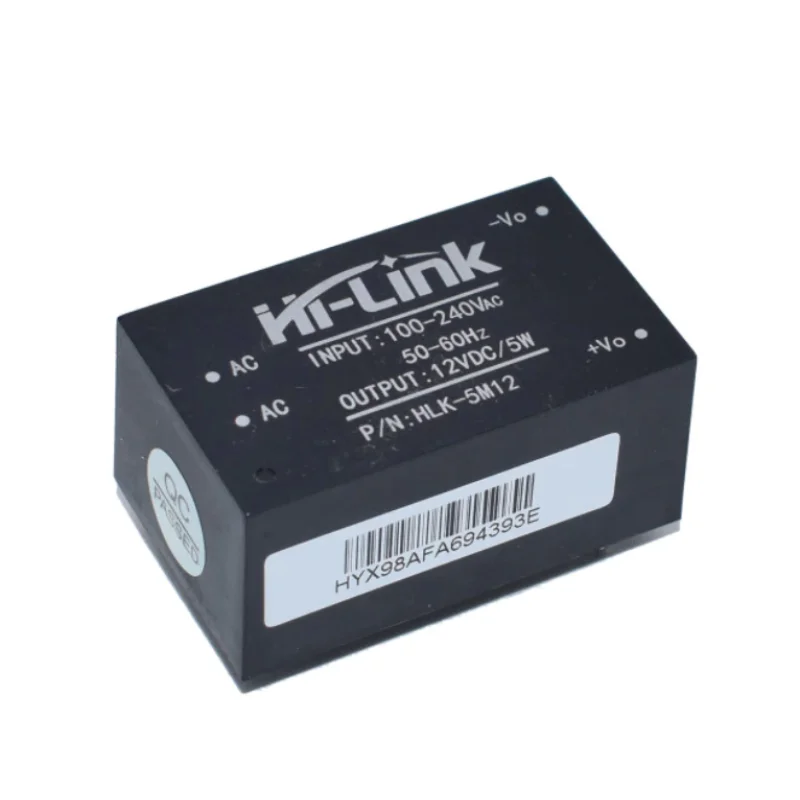

The Hi-Link HLK-5M03/05/12 AC/DC On-Board Power Module is a compact isolated switching power supply designed to convert wide-range AC input into a stable DC output. It supports universal input voltage and provides regulated outputs of 3.3 V, 5 V, or 12 V depending on the model variant. The module is engineered for low power consumption, high efficiency, and low thermal rise, with reinforced electrical isolation for system safety. Its compact on-board design enables direct PCB integration in space-constrained applications. It is commonly used in smart home systems, industrial automation, communication equipment, and electronic instrumentation.
Model HLK-5M03
- Output Voltage 3.3V
- Output Current: 1500 mA
- Output Watt: 5W
- Rated input voltage 90-245 Vac
- Input voltage range 85-264 Vac Or 70-350Vdc
- The maximum input current 0.2 A
- Input inrush current 10 A
- Maximum input voltage 270 Vac
- Input start 50 mS
- Input low voltage Vin=110VacInput full load 69 %
- Size:38*23*18 mm
Model HLK-5M05
- Output Voltage 5V
- Output Current: 1000 mA
- Output Watt: 5W
- Rated input voltage 90-245Vac
- Input voltage range 85-264 Vac Or 70-350Vdc
- The maximum input current 0.2 A
- Input inrush current 10 A
- Maximum input voltage 270 Vac
- Input start 50 mS
- Input low voltage Vin=110VacInput full load 69 %
- Size:38*23*18 mm
Model HLK-5M12
- Output Voltage 12V
- Output Current:450 mA
- Output Watt: 5W
- Rated input voltage 90-245Vac
- Input voltage range 85-264 Vac Or 70-350Vdc
- The maximum input current 0.2 A
- Input inrush current 10 A
- Maximum input voltage 270 Vac
- Input start 50 mS
- Input low voltage Vin=110VacInput full load 69 %
- Size:38*23*18 mm
