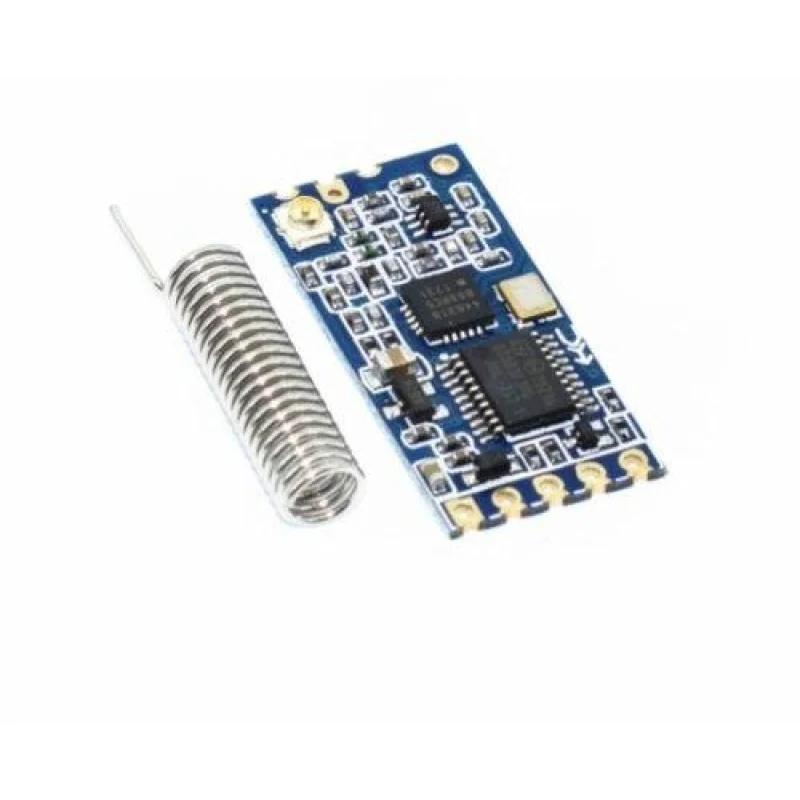

HC-12 RF Wireless Remote Serial Port Module

Name: HC-12 RF Wireless Remote Serial Port Module
SKU: JHJJ7034597829
Availability: InStock

$3.00 ~~$5.00~~

Review

SpecificationsPower supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)Defa

Satisfaction 100% Guaranteed
Free shipping on orders over $30
60 day easy Return

SKU: JHJJ7034597829 Category: Factory Direct

Description
Reviews (0)

Description

Specifications

Power supply voltage : 3.2 V — 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).Default idle current: 16 ma (modules in different working mode of different current).Module size: 27.8mm*14.4mm*4mm.Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)Module supporting software upgrades.Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)
