Description

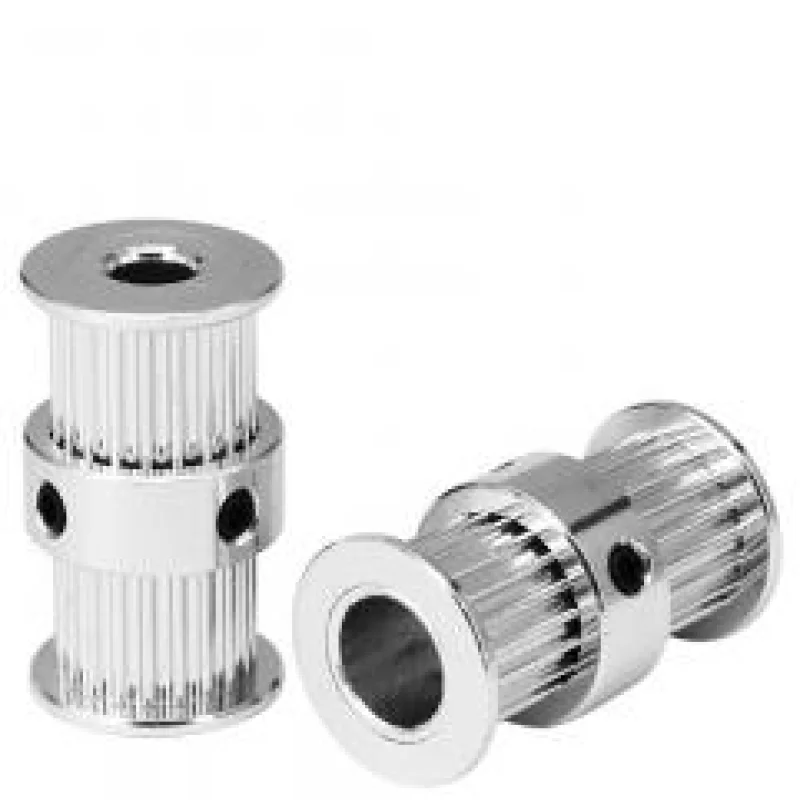

The GT2-20T Double Bore Timing Pulley is designed for synchronous motion systems requiring dual-drive capability or parallel belt operation. It features a 20-tooth GT2 profile with a 10 mm belt width, ensuring accurate and slip-free power transmission. Manufactured from alloy material, it provides high durability, mechanical strength, and stable performance under continuous operation. The dual bore design allows flexible mounting options and supports enhanced torque distribution. Ideal for CNC machines, 3D printers, and synchronized motion mechanisms.
Features
- GT2 tooth profile for precise motion transmission
- Dual bore design for parallel drive systems
- 20 teeth configuration for balanced torque and speed
- 10 mm belt width compatibility
- Alloy construction for durability and wear resistance
- High concentricity for smooth rotation
- Reduced backlash for accurate positioning
- Set screw mounting for secure shaft fixation
- Suitable for dual motor or dual belt setups
- Corrosion-resistant metallic surface
- Stable performance under continuous load
- Compatible with GT2 timing belts
- Supports synchronized mechanical systems
- Compact and rigid structural design
Specifications
- Tooth Type: GT2
- Number of Teeth: 20
- Belt Width: 10 mm
- Material: Alloy
- Bore Diameter: 5 mm / 8 mm
- Pulley Type: Double Bore Timing Pulley
- Pitch: 2 mm
- Outer Diameter: 12.22 mm (approx.)
- Inner Bore Type: Dual shaft mounting
- Fixing Method: Set screws
- Application Type: Synchronous transmission systems
- Surface Finish: Machined metal finish
- Compatibility: GT2 timing belts (2 mm pitch)
- Operating Environment: Mechanical motion systems
