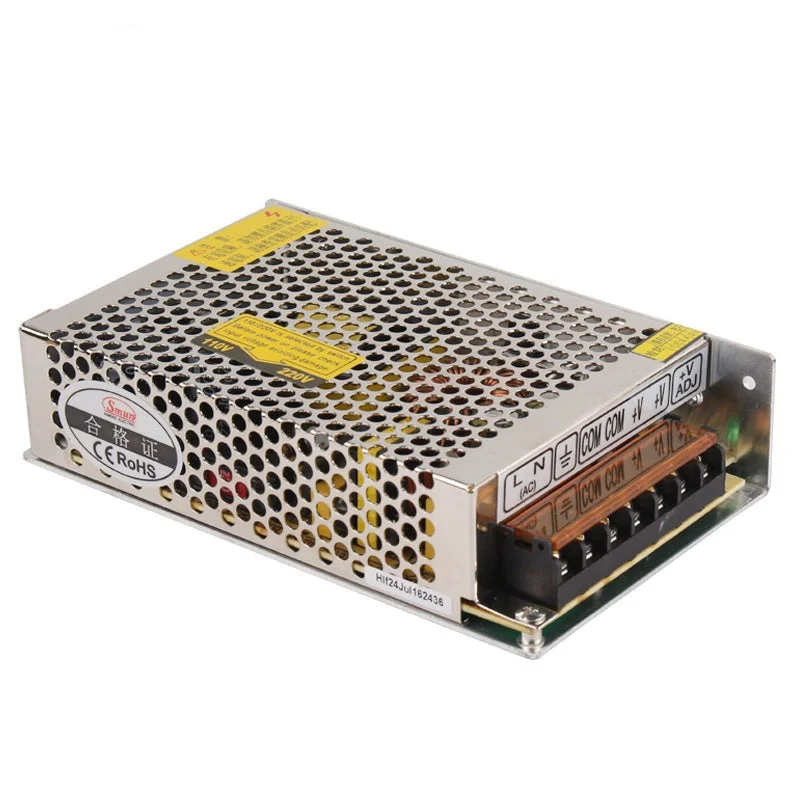

Generic 24V 5A Metal Case AC/DC Power Supply

Description

Description

The Generic 24V 5A Metal Case AC/DC Power Supply 96W is a regulated switching power supply designed to convert 110240 V AC input into a stable 24 V DC output with a maximum current of 5 A. It features a durable metal enclosure that improves heat dissipation and provides mechanical protection during continuous operation. The unit includes clearly labeled AC input terminals for live, neutral, and ground connections, along with dedicated DC output terminals for positive and negative outputs. Its stable high-voltage DC output makes it suitable for industrial control systems, automation equipment, LED applications, and other 24 V DC devices. The device is intended for fixed installation and continuous power distribution.

Features

• Input Voltage Range: 110240 V AC
• Output Voltage: Regulated 24 V DC
• Output Current: Up to 5 A
• Enclosure Material: Metal housing for thermal dissipation and protection
• AC Input Terminals: L (Brown), N (Blue), GND (Yellow/Green)
• DC Output Terminals: +V (Positive), -V (Negative)
• Application Compatibility: Industrial control systems, automation equipment, and LED applications

Specifications

• Input Voltage | 110240 V AC

• Input Frequency | 5060 Hz

• Output Voltage | 24 V DC

• Output Current | Up to 5 A

• Enclosure Material | Metal housing

• AC Input Terminals | L (Brown), N (Blue), GND (Yellow/Green)

• DC Output Terminals | +V (Positive), -V (Negative)

• Cooling Method | Passive heat dissipation via metal casing

• Installation Type | Fixed mounting power supply unit

• Application Area | Industrial control systems, automation equipment, and LED applications
