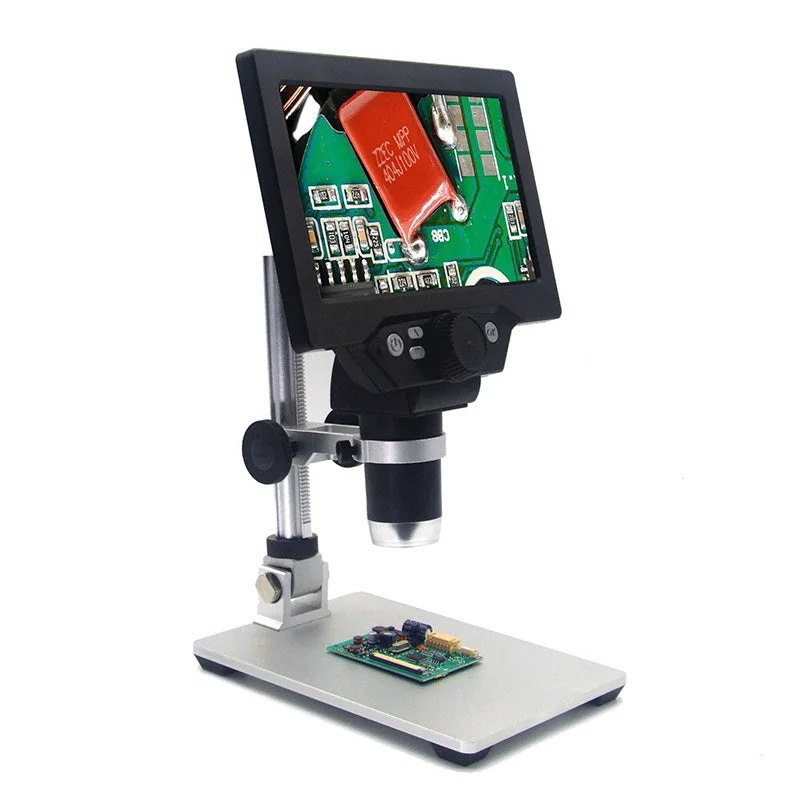

The G1200 Digital Microscope is a high-resolution inspection microscope designed for electronics analysis, precision soldering, biological observation, and educational applications. It features a 12MP image sensor with adjustable magnification from 1X to 1200X and a 7-inch LCD display with Full HD video output support. The microscope supports photo capture, video recording, HDR imaging, and continuous shooting modes for detailed image analysis. Built with adjustable LED illumination and MicroSD storage support, it provides stable imaging performance for laboratories, repair work, and engineering inspection tasks.
Features
- 12MP adjustable image sensor
- 1X to 1200X digital magnification
- 7-inch LCD display with HD output
- Full HD 1080P video recording
- Adjustable 8 LED illumination system
- HDR imaging support
- Continuous shooting mode
- Adjustable exposure compensation
- Photo capture and playback functions
- Supports MicroSD cards up to 128GB
- Automatic screen saver function
- Auto power-off capability
- Multi-language user interface
- USB power input connection
- Suitable for PCB inspection and soldering work
Specifications
- Model: G1200 Digital Microscope
- Display Size: 7 Inch LCD Screen
- Photo Resolution: 12MP Maximum
- Video Resolution: 1080P / 720P
- Magnification Range: 1X 1200X
- Image Sensor: Adjustable CMOS Sensor
- Supported Sensor Modes: 1.3MP / 2MP / 5MP / 8MP / 10MP / 12MP
- LED Lights: 8 Adjustable LEDs
- Exposure Compensation: 7 Levels
- HDR Support: Yes
- ISO Settings: Auto / 100 / 200 / 400
- Timer Modes: 0s / 2s / 5s / 10s
- Continuous Shooting: 3 Consecutive Photos
- Object Distance: 10mm Infinity
- Storage Support: MicroSD Card up to 128GB
- Operating Modes: Recording / Camera / Playback
- Supported Languages: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew,
- Portuguese, German, French, Italian, Turkish, Czech, Chinese
- Power Input: Micro USB
- Color Modes: Normal / Black & White
- Photo Quality Modes: High / Standard / Low
