Description

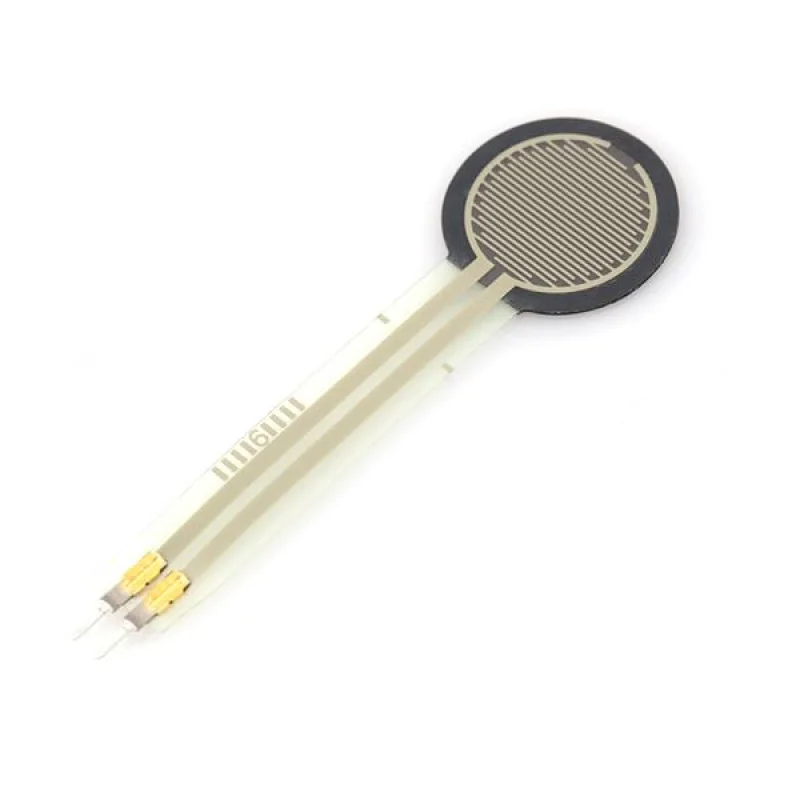

The Force Sensitive Resistor 0.5 Inch is a pressure-sensitive sensor designed to detect applied force through resistance variation. Its resistance decreases as force increases, with a no-load resistance greater than 1 M. The sensor features a 0.5 inch circular sensing area and a 2.54 mm pin pitch for direct breadboard integration. Built on a flexible substrate with peel-and-stick backing, it enables easy mechanical mounting. Ideal for pressure detection, touch sensing, and embedded input applications in prototyping and educational projects.
Note:As it states in the Integration Guide, doNOTsolder directly to the exposed silver traces. With flexible substrates, the solder joint will not hold and the substrate can easily melt and distort during the soldering. We recommend using amaleorfemaleclincher connector instead.
Features
- 0.5 inch circular sensing area
- Force range from 100 g to 10 kg
- Resistance decreases with applied pressure
- 2.54 mm pin pitch for breadboard use
- Flexible polymer thick film construction
- Peel-and-stick rubber backing
- Fast response to dynamic force changes
- Low power passive sensing element
- Compact 60.3 19.1 mm overall size
- Lightweight and low profile design
- Suitable for analog voltage divider circuits
Specifications
- Sensing Diameter: 12.7 mm
- Force Sensing Range: 100 g 10 kg
- No-Load Resistance: >1 M
- Actuation Response: Resistance decreases with force
- Pin Pitch: 2.54 mm
- Overall Length: 60.3 mm
- Overall Width: 19.1 mm
- Thickness: <1 mm
- Substrate Material: Flexible polymer
- Mounting Method: Adhesive backing
- Operating Temperature: -30 C to +70 C
- Interface Type: Analog resistive output
Links
- FSR Integration Guide
- QuickStart Guide
- Hookup Guide
- FSR Mounts
Tutorials
- Tutorial 10- FSR402 Pressure Force Sensor with Arduino Uno
