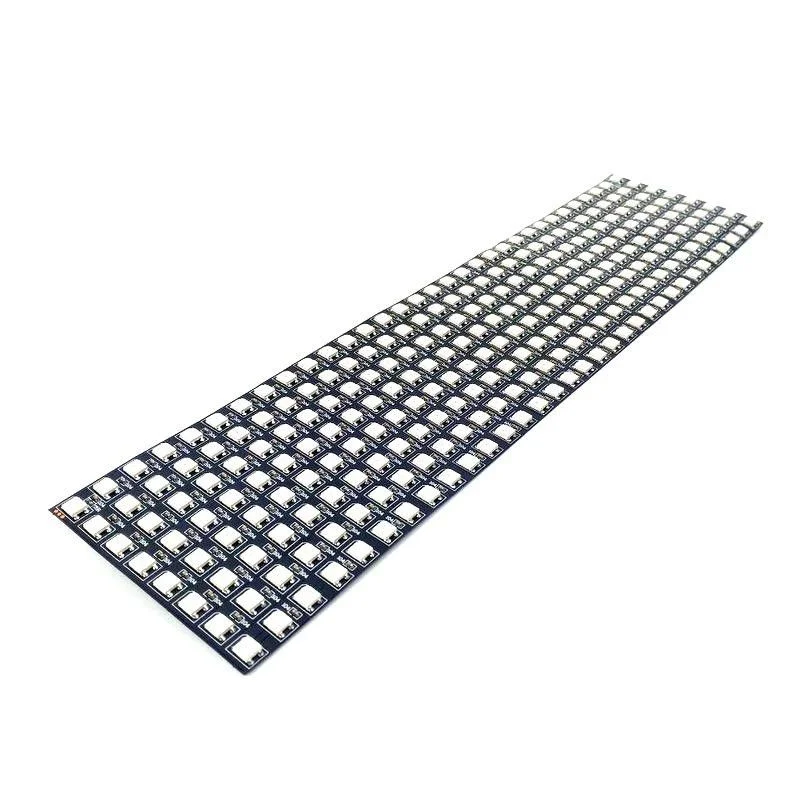

The Flexible RGB LED Matrix 832 is an addressable LED panel designed for dynamic lighting and display applications. It features 256 WS2812B LEDs arranged in an 832 grid, each individually controllable via a single data line. The panel operates at 5V DC and supports full 24-bit RGB color control, enabling precise animations, text scrolling, and graphic rendering. Built on a flexible PCB, it can be gently bent to fit curved surfaces while maintaining reliable performance. Ideal for interactive displays, wearable electronics, and embedded lighting projects.
Features
- WS2812B addressable LED technology with single-wire control
- 256 individually controllable RGB LEDs (832 matrix)
- 24-bit color depth for full RGB spectrum
- Flexible PCB construction for curved surface mounting
- Compatible with Arduino, Raspberry Pi, and microcontrollers
- Cascadable design via 3-pin JST SM connectors
- High brightness SMD5050 LED package
- Supports animations, text scrolling, and graphics display
- Standard NeoPixel protocol compatibility
- Low wiring complexity with single data input
- Uniform LED spacing for consistent visual output
- Expandable to larger displays through chaining
- Suitable for portable and fixed installations
Specifications
- Operating Voltage: 5V DC
- LED Type: WS2812B (SMD5050)
- LED Quantity: 256 LEDs (832 matrix)
- Color Resolution: 24-bit RGB (Red, Green, Blue)
- Max Power Consumption: 61.44W
- Max Current Draw: 4.2A (full white brightness)
- Recommended Power Supply: 5V 3A minimum
- Control Signal: Single-wire digital data (DIN/DOUT)
- PCB Type: Flexible bendable PCB
- Dimensions: 320 80 mm
- Waterproof Rating: No
- Expansion Interface: 3-pin JST SM connectors
- Operating Temperature: -20C to 60C
- Compatibility: Arduino, Raspberry Pi, ESP32, NeoPixel libraries
Links
- Flexible RGB LED Matrix 832 WS2812B Addressable 5V Panel 3D Model
- WS2812B Datasheet
Tutorials
- Total $15 : Esp01 WS2812 RGB led matrix 8×32 esp8266 arduino code
