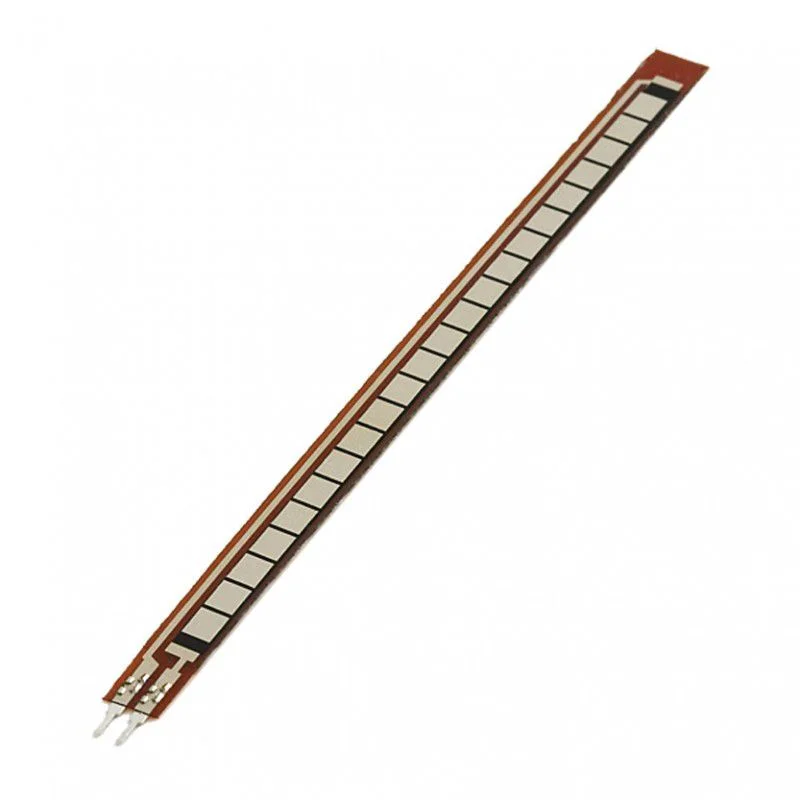

The Flex Sensor 4.5 Inch is a resistive bending sensor designed to detect and measure angular deflection. Its resistance increases proportionally as the sensor is flexed, enabling accurate position and motion detection. Manufactured using patented technology by Spectra Symbol, it offers stable and repeatable performance. With a nominal resistance of 9k when straight and up to 22k at 180 bend, it is suitable for robotics, wearable electronics, and motion control applications.
Features
- Resistive bending sensing technology
- 4.5 inch active sensing length
- 9k nominal straight resistance
- Up to 22k at 180 bend
- Analog variable resistance output
- Single-axis bend detection
- Lightweight and flexible substrate
- Low power passive operation
- Compatible with Arduino and ADC systems
- Patented Spectra Symbol technology
Specifications
- Length: 114.3 mm
- Width: 6.35 mm
- Thickness: 0.43 mm
- Straight Resistance: 9 k
- Resistance @ 90 Bend: 14 k
- Resistance @ 180 Bend: 22 k
- Resistance Tolerance: 30%
- Operating Temperature: -35C to +80C
- Power Rating: 0.5 W continuous
- Connector Type: Solder tab pads
- Bend Direction: Single direction (text inside bend)
- Weight: < 5 g
