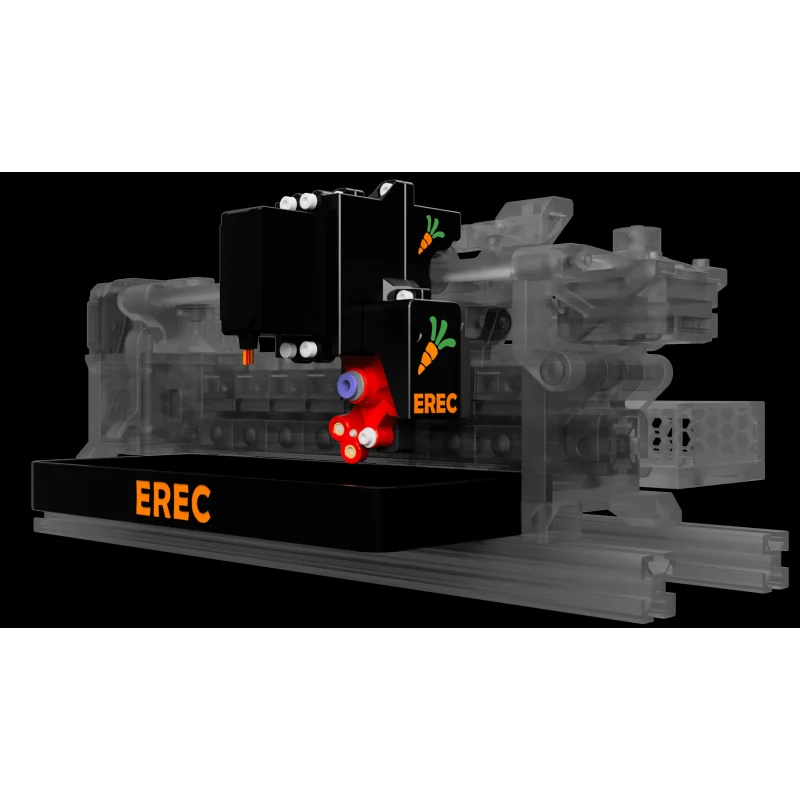

ERCF Encoder Cutter (EREC)

Description

For more information about this project see GitHub.

From GitHub:

EREC

This is a simple filament cutter for the awesome ERCF so tip tuning is less important.

It’s made out of a Servo and a scalpell/exacto knife blade. The cutter get’s mouted to the selector chart just behind the encoder – the cutter is basically an arm that swings to the left and right. Since the ECAS sits now on the Arm the filament path can be opened by swining the arm to the side. Then the ERCF can feed some filament mid air (the filament tip) and when the arm swings back to close the filament path the tip gets cut off by the knife on the arm. The cut off tip just falls off to the ground and the filament can be loaded with a clean tip the next time.
