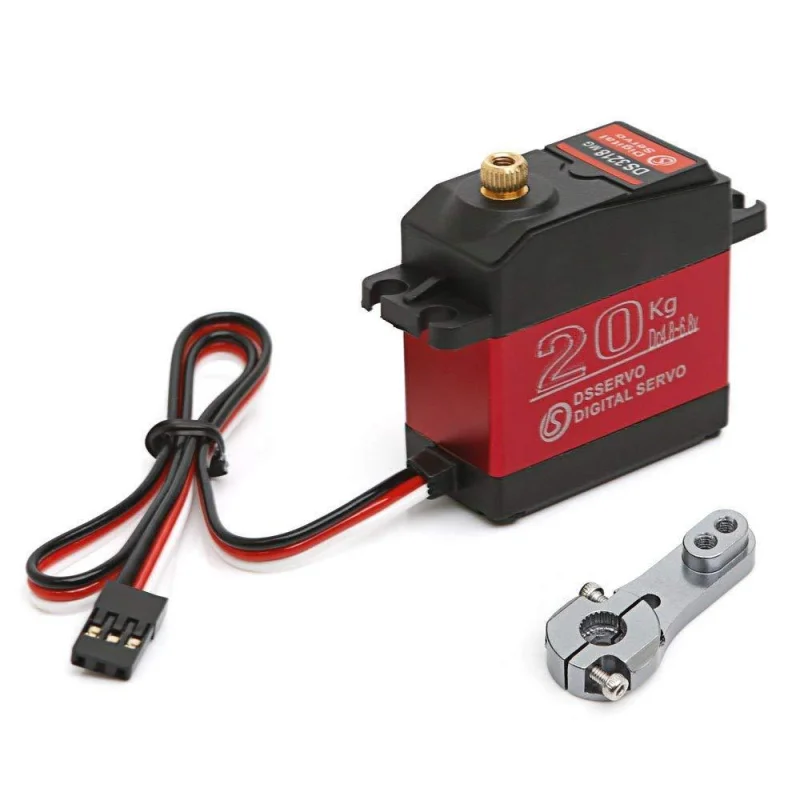

DS3218 Pro-270 Metal Gear Servo 20kgcm High Torque

Description

Description

The DS3218 Pro-270 Metal Gear Servo is a high-torque positional servo designed for robotics, automation, and mechanical control systems. It features a DC motor with copper and aluminum gears, providing up to 21.5 kgcm torque at 6.8V for demanding applications. Built for stable and precise angle control, it offers fast response times and a narrow dead band for accurate positioning. The servo operates within a 4.86.8V range, ensuring compatibility with common control systems. Ideal for robotic arms, RC models, and engineering prototypes requiring reliable motion control.

Features

• High torque output up to 21.5 kgcm at 6.8V

• Metal gear system with copper and aluminum construction

• Positional rotation with 270 control range

• Fast response speed down to 0.14 sec/60

• Narrow 3s dead band for precise positioning

• Wide operating voltage range 4.8V to 6.8V

• Stable PWM control at 1520s / 333Hz

• DC motor for consistent performance

• Durable gear train for high-load applications

• Standard 3-wire servo interface

• Compact design for easy integration

• Suitable for robotics and RC systems

• Reliable operation under continuous load

Specifications

• Operating Voltage: 4.86.8V DC

• Stall Torque (5V): 19 kgcm

• Stall Torque (6.8V): 21.5 kgcm

• Speed (5V): 0.16 sec/60

• Speed (6.8V): 0.14 sec/60

• Dead Band Width: 3 s

• Control Signal: PWM (1520 s / 333 Hz)

• Rotation Type: Positional (270)

• Motor Type: DC Motor

• Gear Type: Copper & Aluminum Metal Gears

• Weight: 60 g

• Dimensions: 40.5 20 40 mm (typical)

• Connector Type: 3-Pin Standard Servo Connector

Links

• DS3218 Pro-270 Metal Gear Servo Datasheet
• Servo DS3218MG3D Model
• DS3218 servo holder


Tutorials

• Cheap Servo Demo – DS3218/PRO vs MG996R vs JX PDI-6208MG
