Description

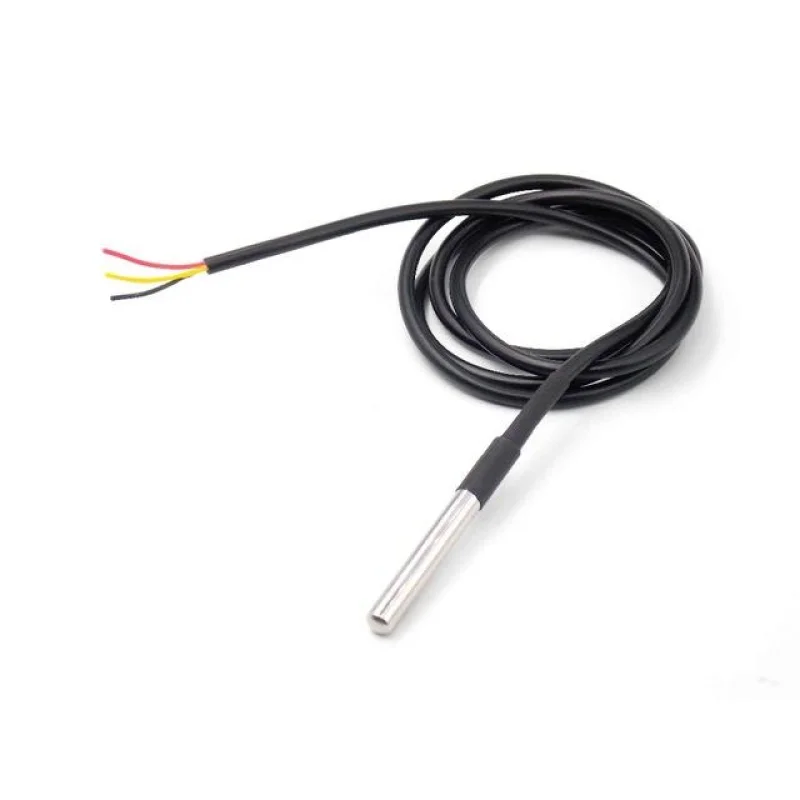

The DS18B20 is a digital temperature sensor designed for accurate temperature measurement using a 1-Wire communication interface. It supports 9-bit to 12-bit resolution and operates over a wide temperature range from -55 C to +125 C. The sensor features a stainless steel waterproof probe with a 100 cm cable, enabling reliable operation in humid or liquid environments. With a unique 64-bit serial code and optional parasite power mode, it allows multiple sensors to be connected on a single data line. It is suitable for embedded systems, industrial monitoring, and environmental sensing applications.
Features
- Digital temperature sensor with 1-Wire interface
- 9-bit to 12-bit selectable resolution
- Wide temperature measurement range
- 0.5 C accuracy from -10 C to +85 C
- Stainless steel waterproof probe
- 100 cm insulated connection cable
- Unique 64-bit serial identification code
- Supports parasite power operation
- Multi-drop capability on single data line
- Suitable for liquid and outdoor environments
Specifications
- Power supply: 3.0 V to 5.5 V
- Interface: 1-Wire digital communication
- Resolution: 9-bit to 12-bit programmable
- Operating temperature: -55 C to +125 C
- Storage temperature: -55 C to +125 C
- Accuracy: 0.5 C (-10 C to +85 C)
- Probe material: Stainless steel
- Probe dimensions: 6 mm 50 mm
- Cable length: 100 cm
- Output leads: Yellow (VCC), Red (DATA), Black (GND)
- Water resistance: Waterproof probe design
- Identification: Unique 64-bit serial code
Links
- DS188B20 DataSheet
- DS18B20 Thermosensor 3D Model
Tutorials
- Arduino DS18B20 temperature sensor tutorial
- Raspberry Pi DS18B20 Temperature Sensor Tutorial
