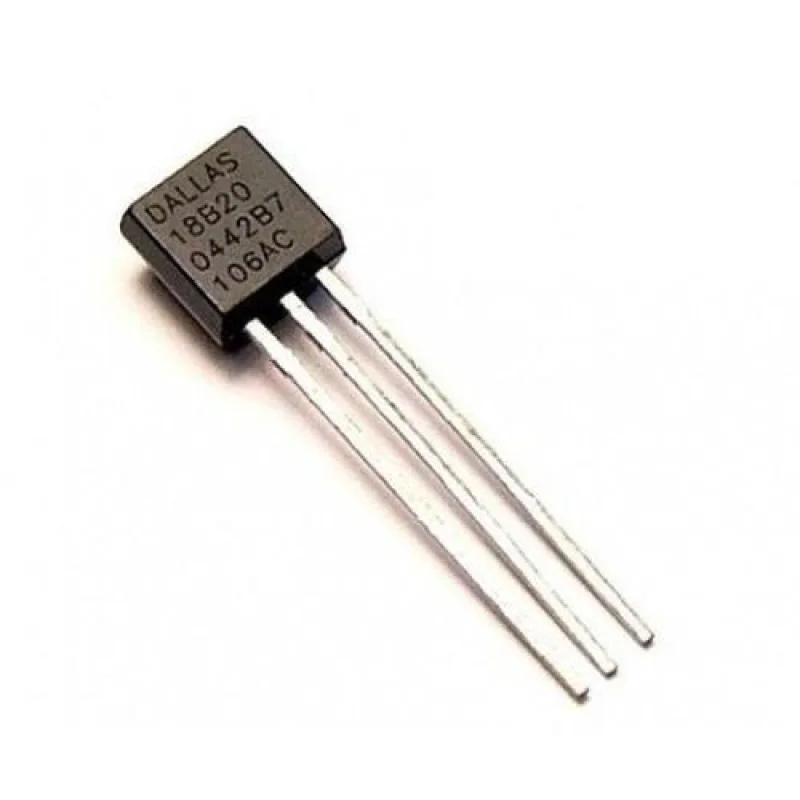

The DS18B20 is a digital temperature sensor in a TO-92 (DIP) package designed for precise temperature measurement in embedded systems. It communicates using a 1-Wire interface, requiring only a single data line for operation. Each sensor features a unique 64-bit serial code, allowing multiple sensors to operate on the same bus. This is the standard non-waterproof version, intended for PCB mounting or enclosed environments, and is suitable for data logging, thermostatic control, and industrial monitoring applications.
Features
- Digital temperature sensor in TO-92 DIP package
- 1-Wire interface using single data line
- Unique 64-bit serial number per device
- Supports multiple sensors on one bus
- User-selectable 9 to 12-bit resolution
- 0.5C accuracy from 10C to +85C
- Wide temperature range 55C to +125C
- Parasite power support via data line
- Nonvolatile high and low alarm registers
- No external components required
- Designed for PCB mounting applications
Specifications
- Interface: 1-Wire digital communication
- Operating Voltage: 3.05.5 V DC
- Power Supply Mode: External supply or parasite power
- Temperature Measurement Range: 55C to +125C
- Accuracy: 0.5C from 10C to +85C
- Resolution: 9-bit to 12-bit selectable
- Conversion Time: 750 ms max at 12-bit
- Unique ID: 64-bit ROM code per device
- Alarm Function: User-programmable NV high and low alarms
- Alarm Detection: Alarm search command supported
- Package Type: TO-92 (DIP, non-waterproof)
- Mounting Type: Through-hole PCB mounting
