Description

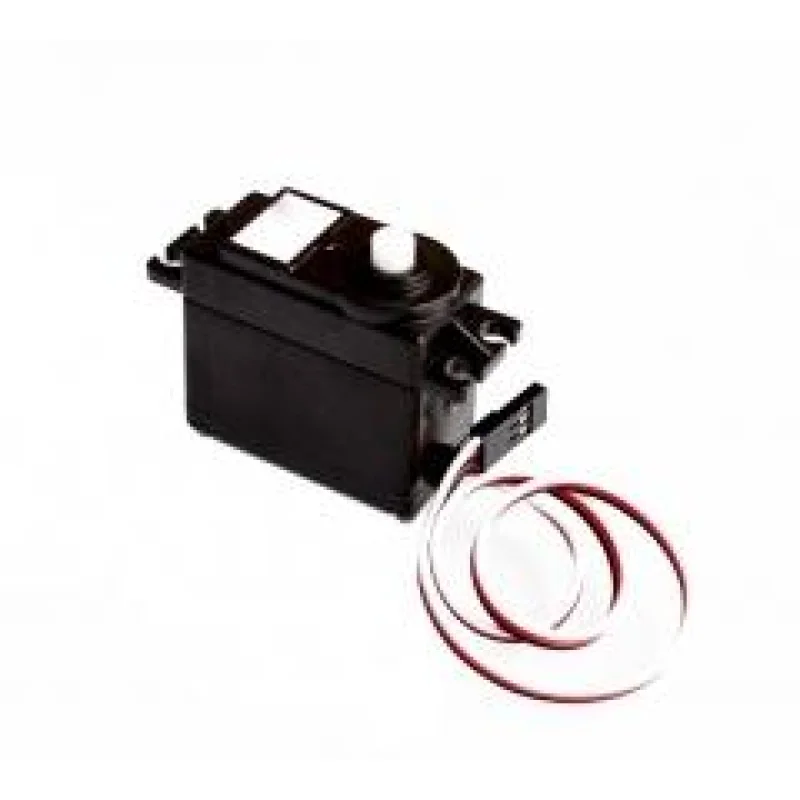

The DS04-NFC Continuous Rotation Servo is a compact actuator designed for applications requiring controlled rotational motion rather than positional movement. It operates within a 4.8V to 6V range and delivers up to 5.5 kgcm torque, making it suitable for medium-load mechanical systems. The servo features stable speed control via PWM signals and includes a standard 3-pin interface for easy integration with microcontrollers such as Arduino and Raspberry Pi. Built for consistent performance, it ensures reliable operation in robotics and automation systems. Ideal for mobile robots, conveyor mechanisms, and continuous drive applications.
Features
- Continuous rotation mechanism for 360 motion
- 5.5 kgcm torque output at 4.8V
- Operating voltage range 4.8V to 6V
- PWM signal control for speed and direction
- Standard 3-pin interface for easy integration
- Compatible with Arduino and Raspberry Pi systems
- Compact plastic housing with durable gear system
- Stable rotational speed under varying loads
- Low power consumption design
- Includes mounting hardware and servo horns
- Fast response time with smooth motion control
- Suitable for mobile robotics applications
- Reliable operation within 0C to 60C range
- Lightweight structure for embedded systems
Specifications
- Operating Voltage: 4.86V DC
- Torque: 5.5 kgcm @ 4.8V
- Speed: 0.22 sec/60 @ 4.8V
- Rotation Type: Continuous (360 rotation)
- Control Signal: PWM (Pulse Width Modulation)
- Interface: 3-pin (VCC, GND, Signal)
- Current Consumption: <1000 mA
- Dimensions: 40.8 20 39.5 mm
- Gear Type: Plastic gears
- Operating Temperature: 0C to 60C
- Cable Length: Standard servo cable (~25 cm)
- Mounting: Standard servo mounting holes
- Compatibility: Arduino, Raspberry Pi, microcontrollers
Links
- DS04-NFC Continuous Rotation Servo Datasheet
- DS04-NFC Continuous Rotation Servo 3D Model
- Cinta Transportadora – Conveyor belt CV1
Tutorials
- DS04-NFC continuous rotation Servo test
