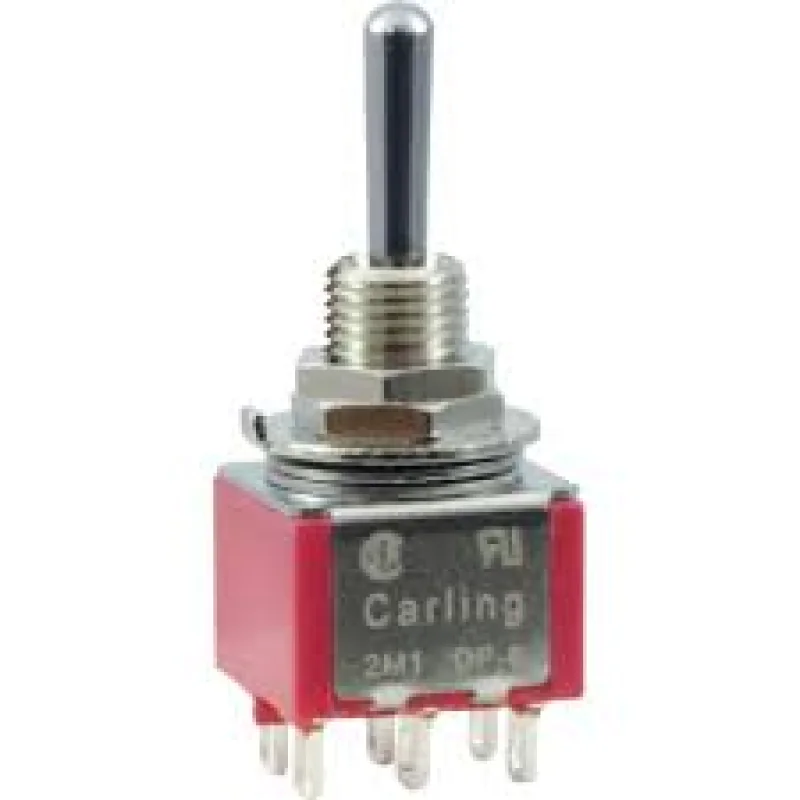

The DPDT Toggle Switch is a double pole double throw mechanical switch designed for reliable circuit control and signal routing. It features two independent poles, each capable of switching between two outputs, enabling flexible dual-channel operation. Built with durable metal contacts and a stable toggle mechanism, it ensures consistent electrical performance under repeated use. This switch supports low to moderate voltage and current applications, making it suitable for control panels, DIY electronics, and embedded system projects.
Features
- Double pole double throw (DPDT) switching mechanism
- Two independent input channels with dual outputs
- 2-position toggle operation (ON-ON configuration)
- 6-pin terminal layout for flexible wiring
- Mechanical toggle actuator for precise control
- Durable metal contacts for stable conductivity
- Supports AC and DC switching applications
- Compact panel-mount design
- Reliable switching under repeated operations
- Suitable for signal routing and polarity reversal
- Easy integration into control circuits
- Standard pin spacing for prototyping compatibility
Specifications
- Switch Type: DPDT (Double Pole Double Throw)
- Actuator Type: Toggle lever
- Switch Positions: 2 Position (ON-ON)
- Number of Pins: 6 Pins
- Rated Voltage: 125V AC / 250V AC
- Rated Current: 3A @ 250V AC
- Contact Type: SPDT 2 internally
- Mounting Type: Panel mount
- Terminal Type: Solder lug / pin terminals
- Contact Material: Copper alloy
- Insulation Resistance: 100 M
- Operating Temperature: -20C to 85C
- Mechanical Life: 10,000 cycles
- Electrical Life: 5,000 cycles
