Description

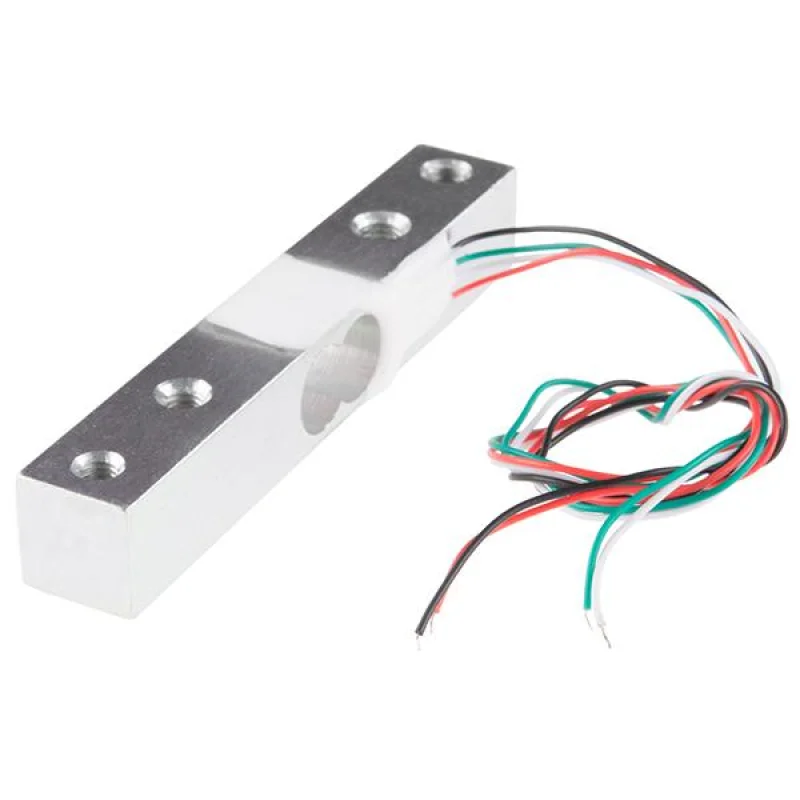

The Digital Weight Sensor Load Cell is a precision strain gauge sensor designed to measure weight or force by converting mechanical pressure into an electrical signal. It features an aluminum-alloy straight bar structure with four strain gauges arranged in a Wheatstone bridge for stable and accurate measurements. The sensor operates with a recommended excitation voltage of 312V DC and provides a rated output of 1.0 mV/V. It offers reliable performance for weight detection, force measurement, and load monitoring in embedded systems. Ideal for digital scales, Arduino-based weighing systems, and automation projects. These load cells have four strain gauges that are hooked up in a wheatstone bridgeformation. The color code on the wiring is as follows: red = power+, green = signal+, black = power-, and white = signal-.
Features
- Aluminum alloy straight bar load cell structure
- Four strain gauges arranged in Wheatstone bridge
- High sensitivity weight and force detection
- Rated output 1.0 mV/V 0.15 mV/V
- Low creep characteristic 0.03% F.S. per 30 minutes
- Stable zero output 0.1 mV/V
- Recommended operating voltage 312 V DC
- Maximum excitation voltage up to 15 V DC
- High input impedance for accurate signal conditioning
- Suitable for Arduino and HX711 amplifier modules
- Color-coded wiring for easy integration
- Compact design for digital scale systems
- Reliable aluminum construction for long-term use
Specifications
- Rated output: 1.0mV/V 0.15mV/V
- Zero output: 0.1mV/V
- Creep: 0.03% F.S./30min
- Recommended operating voltage: 312V DC
- Maximum operating voltage: 15V DC
- Input impedance: 1115 10%
- Output impedance: 1000 10%
- Material: Aluminum Alloy
- Wiring configuration: Wheatstone Bridge (4-wire)
- Wire color code: Red VCC+, Black VCC, Green Signal+, White Signal
- Capacity options: 1kg / 5kg / 20kg
- Operating temperature: 20C to 65C
Links
- YZC-131A Load Cells Datasheet
- Load Cell 3D Model
- Load cell testbed
Tutorials
- DIY Arduino Weighing Scale with Load Cell & HX711 Module – Full Calibration
