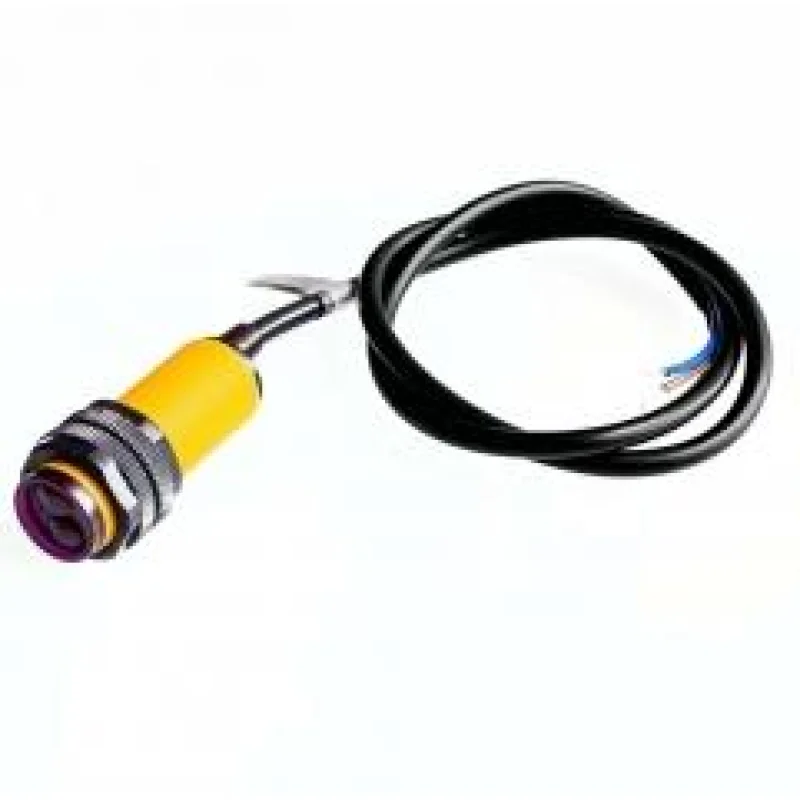

Digital Adjustable Infrared Proximity Sensor – 3 to 80cm Range

Description

Description

The Digital Adjustable Infrared Proximity Sensor is a compact module designed for detecting objects within a 380cm range. It outputs a digital signal compatible with Arduino and other microcontrollers, allowing easy integration in robotics, interactive media, and industrial automation applications. The detection distance is adjustable via a screw on the sensor, providing flexible calibration for different environments. Operating at 5V with a current of 100mA, the module measures 45 18 18mm, making it suitable for both small-scale and prototype projects. Its infrared sensing technology is optimized for indoor use, providing reliable wall detection, obstacle avoidance, and trigger system functionality.

Features

• Detection Range | Adjustable 380cm for flexible sensing

• Sensor Type | Infrared proximity with digital output

• Interface | Digital signal compatible with Arduino and microcontrollers

• Operating Voltage | 5V DC

• Current Consumption | 100mA typical

• Adjustable Calibration | Screw for fine-tuning detection distance

• Module Dimensions | 45 18 18mm for compact integration

• Applications | Robotics, obstacle detection, trigger systems, interactive media

Specifications

• Operating Voltage | 5V DC

• Current Consumption | 100mA typical

• Signal Output | Digital high/low compatible with Arduino and microcontrollers

• Module Dimensions | 45 18 18mm (L W H)

• Weight | 10g

• Adjustable Calibration | Screw for detection distance tuning

• Detection Range | 380cm adjustable

• Sensor Type | Infrared proximity

• Response Time | <50ms

• Field of View | ~35

• Operating Temperature | 0C to 50C

• Storage Temperature | -10C to 60C

Links

• 3D model on grabcad.com

Tutorials

• Tutorial on instructables.com
