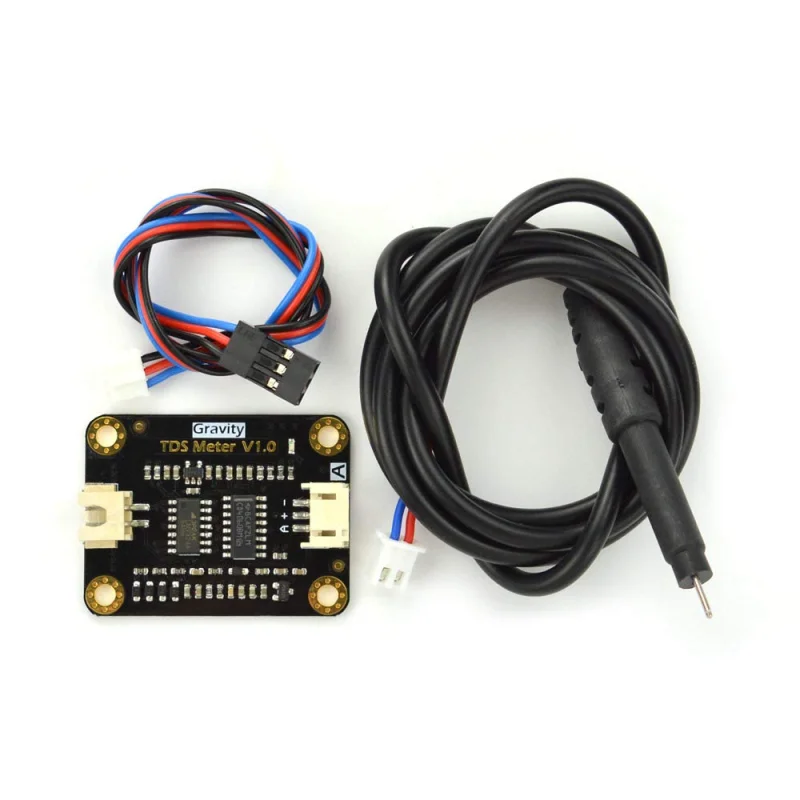

The DFRobot Gravity Analog TDS Sensor is designed to measure the Total Dissolved Solids (TDS) level in water for quality monitoring applications. It outputs a stable 02.3V analog signal compatible with 3.3V and 5V microcontrollers such as Arduino. The module uses an AC excitation source to reduce probe polarization and improve measurement reliability. Equipped with a waterproof probe and Gravity plug-and-play interface, it ensures easy integration into embedded systems. Ideal for water quality testing, hydroponics, and domestic water monitoring systems.
Features
- Analog TDS measurement module
- Wide input voltage 3.35.5V DC
- 02.3V analog signal output
- AC excitation to prevent probe polarization
- Waterproof immersion probe
- Gravity interface plug-and-play design
- Compatible with Arduino boards
- Supports 3.3V and 5V controllers
- Stable and repeatable measurements
- Compact control board layout
- Suitable for continuous monitoring systems
Specifications
- Operating Voltage: 3.35.5V DC
- Analog Output Voltage: 02.3V
- Excitation Mode: AC signal
- Measurement Parameter: Total Dissolved Solids (TDS)
- Probe Type: Waterproof immersion probe
- Output Interface: Analog
- Compatible Controllers: 3.3V / 5V MCU
- Connection Type: Gravity 3-pin interface
- Recommended Temperature Range: 060C
- Calibration: Software calibration supported
- Application Media: Fresh water
Links
- Schematic
- Layout with Dimension
- CD4060BM96 Datasheet
- LMV324A-SR Datasheet
- DFRobot Gravity TDS Sensor Library(Github)
