Description

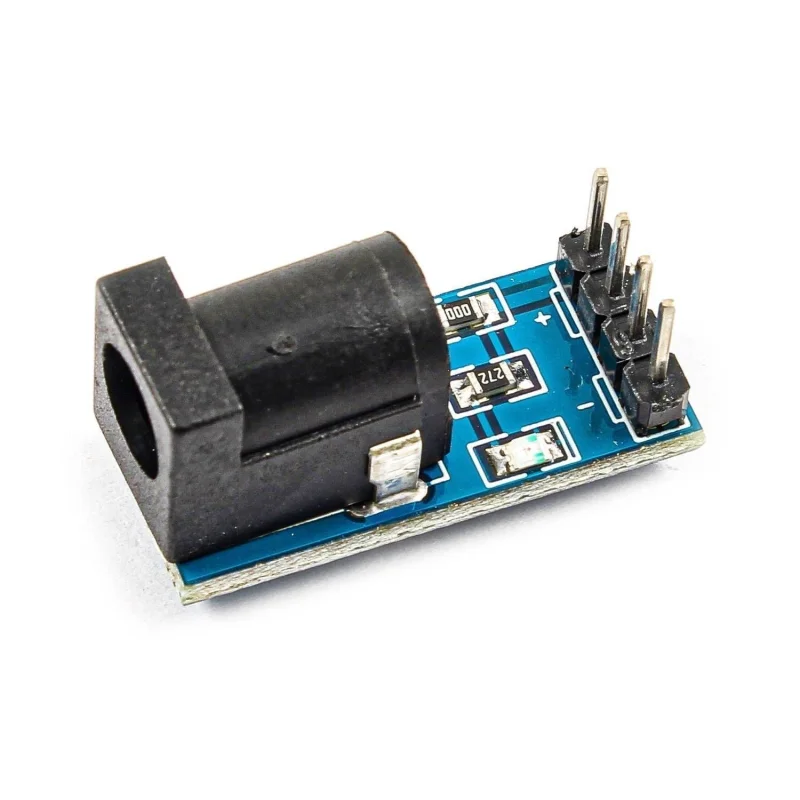

The DC Power Female Jack Module is a compact breakout board designed for connecting DC wall power supplies to electronic projects and embedded systems. It features a standard 5.5 2.1 mm barrel-type DC jack commonly used with regulated DC adapters and development boards. The module provides a simple screw terminal style breakout with dual VCC and GND output interfaces for reliable power distribution. Built for stable and secure DC power connections, it is suitable for prototyping, DIY electronics, Arduino projects, and low-voltage power applications.
Features
- Standard 5.5 2.1 mm DC barrel jack
- Dual VCC output terminals
- Dual GND output terminals
- Compact breakout board design
- Compatible with common DC wall adapters
- Secure soldered connector interface
- Easy integration with prototype circuits
- Suitable for Arduino and embedded projects
- Stable low-voltage DC power connection
- Lightweight PCB construction
- Simple two-wire power distribution
- Designed for DIY electronics applications
- Reliable contact for continuous operation
- Convenient external power input solution
- Supports rapid prototyping setups
Specifications
- Connector Type: Female DC Barrel Jack
- Jack Size: 5.5 2.1 mm
- Output Interface: 2 VCC, 2 GND
- Mounting Type: PCB Breakout Module
- Input Voltage Type: DC
- Board Material: FR4 PCB
- Connector Material: Nickel-Plated Metal
- Housing Material: Plastic Insulated Jack
- Connection Method: Soldered PCB Contacts
- Application Type: External DC Power Connection
- Board Color: Blue
- Operating Temperature: -10C to 60C
- Module Dimensions: Approx. 38 14 12 mm
- Weight: Approx. 5 g
- Compatibility: Standard 5.5 2.1 mm DC Adapters
