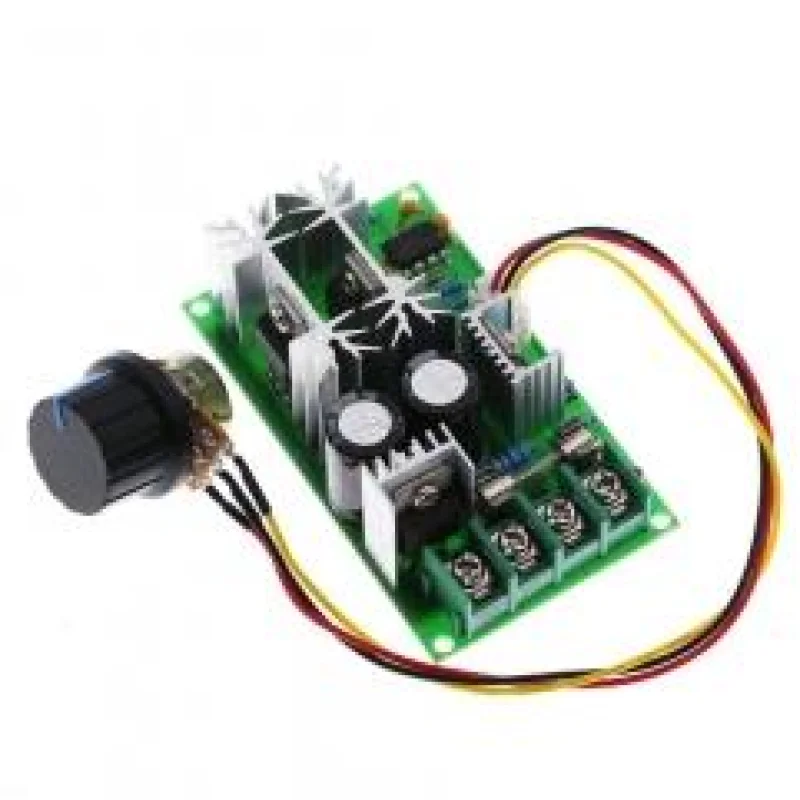

This DC motor speed controller is designed for precise and efficient control of high-power DC motors using PWM technology. It operates within a wide input voltage range of 960V and supports currents up to 20A, making it suitable for demanding applications. The module features a high-frequency 25kHz PWM signal for smooth and stable speed regulation with reduced noise. Built for reliable performance, it includes a potentiometer-based control interface for accurate adjustment. Ideal for industrial automation, robotics, and motor-driven systems requiring consistent speed control.
Features
- PWM control technology for efficient speed regulation
- Wide input voltage range 960V DC
- High current capability up to 20A
- Continuous current rating up to 18A
- Maximum power handling up to 1200W
- High-frequency operation at 25kHz
- Potentiometer-based speed adjustment
- Smooth speed range from 0% to 100%
- Compact PCB design for easy integration
- Stable output with reduced heat generation
- Simple wiring with screw terminals
- Suitable for brushed DC motors
- Low noise operation due to high PWM frequency
Specifications
- Input Voltage: 960V DC
- Output Voltage: Linear load output
- Output Current: 020A
- Maximum Current: 20A
- Continuous Current: 18A
- Maximum Power: 1200W
- Control Frequency: 25kHz
- Speed Regulation Type: PWM (Pulse Width Modulation)
- Speed Control Method: Potentiometer (linear)
- Speed Range: 0100%
- Potentiometer Hole Diameter: 7mm
- Module Dimensions: 77 45 28 mm
- Board Dimensions: 73 40 mm
- Motor Type: Brushed DC motor
