Description
Description

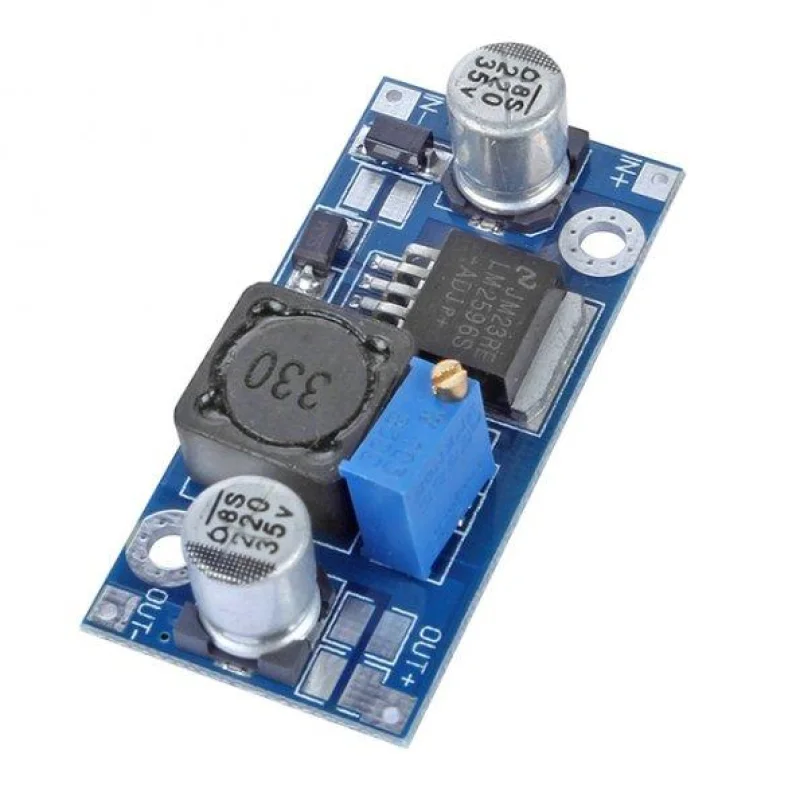

The DC-DC Adjustable Buck Converter 3A (3.240 V to 1.2535 V) is a step-down voltage regulation module based on the LM2596 switching controller. It converts a higher DC input voltage into a lower adjustable DC output using an onboard potentiometer for precise voltage setting. The module supports up to 3 A output current and operates with high conversion efficiency up to approximately 92% under optimal load conditions. It is designed for stable low-ripple power delivery, making it suitable for embedded systems, prototyping, and regulated DC power supply applications. The compact module is compatible with a wide range of electronic and industrial low-voltage systems.
Features
- Switching Controller IC: LM2596-based step-down regulation
- Input Voltage Range: 3.240 V DC
- Output Voltage Adjustment: 1.2535 V DC via onboard potentiometer
- Output Current Capability: Up to 3 A
- Conversion Efficiency: Up to 92% under optimal load conditions
- Switching Frequency: 65 kHz fixed-frequency operation
- Output Ripple Level: <30 mV for stabilized DC output
- Module Construction: PCB-mounted DC-DC buck converter board
Specifications
-
Input Voltage Range | 3.240 V DC
-
Output Voltage Range | 1.2535 V DC (adjustable via potentiometer)
-
Output Current | Up to 3 A
-
Conversion Efficiency | Up to 92% under optimal load conditions
-
Switching Frequency | 65 kHz fixed-frequency operation
-
Output Ripple Voltage | <30 mV
-
Regulator Type | LM2596-based DC-DC buck converter
-
Module Type | PCB-mounted step-down voltage regulator
-
Adjustment Method | Onboard potentiometer control
-
Application Area | Embedded systems, DIY electronics, and regulated DC power supplies
Links
- LM2596 Datasheet
