Description

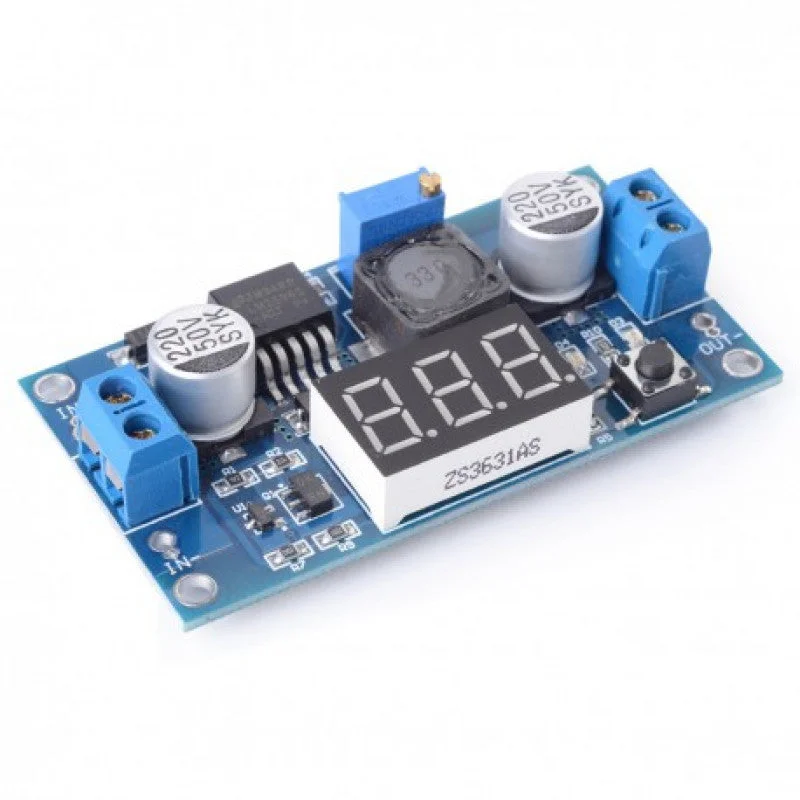

The DC-DC Adjustable Buck Converter 2 A (3.240 V to 1.2535 V) with Display Module is a switching step-down voltage regulator designed to provide a stable and adjustable DC output from a higher DC input source. It supports an input range of 3.240 V DC and delivers an adjustable output from 1.2535 V DC with a maximum output current of up to 2 A (3 A peak). The integrated digital display enables real-time monitoring of input or output voltage for improved system control. It is suitable for laboratory power supplies, embedded systems, LED drivers, and general electronic prototyping requiring adjustable regulated voltage.
Features
- DC-DC Buck Topology: Switching step-down converter for regulated adjustable DC output
- Input Voltage Range: 3.240 V DC
- Output Voltage Range: Adjustable 1.2535 V DC via onboard control potentiometer
- Output Current Capability: Up to 2 A continuous (3 A peak) under suitable thermal conditions
- Digital Display Module: Real-time indication of input or output voltage measurement
- Switching Frequency: 65 kHz fixed-frequency operation for stable conversion
- Efficiency Performance: Up to 92% conversion efficiency under optimal load conditions
- Protection Functions: Over-temperature, soft-start, and current limiting protection integrated
Specifications
-
Module Type | DC-DC adjustable step-down (Buck) converter with digital display
-
Input Voltage Range | 3.240 V DC
-
Output Voltage Range | Adjustable 1.2535 V DC via onboard potentiometer
-
Output Current Capability | Up to 2 A continuous (3 A peak) under suitable thermal conditions
-
Display Function | Digital voltage display for real-time input or output monitoring
-
Switching Frequency | 65 kHz fixed-frequency operation
-
Conversion Efficiency | Up to 92% under optimal load conditions
-
Protection Features | Over-temperature protection, soft-start, and current limiting
-
PCB Dimensions | 66 36 12 mm
-
Operating Temperature Range | 45 C to +85 C
-
Application Area | Laboratory power supplies, embedded systems, LED drivers, and adjustable DC regulation systems
