Description

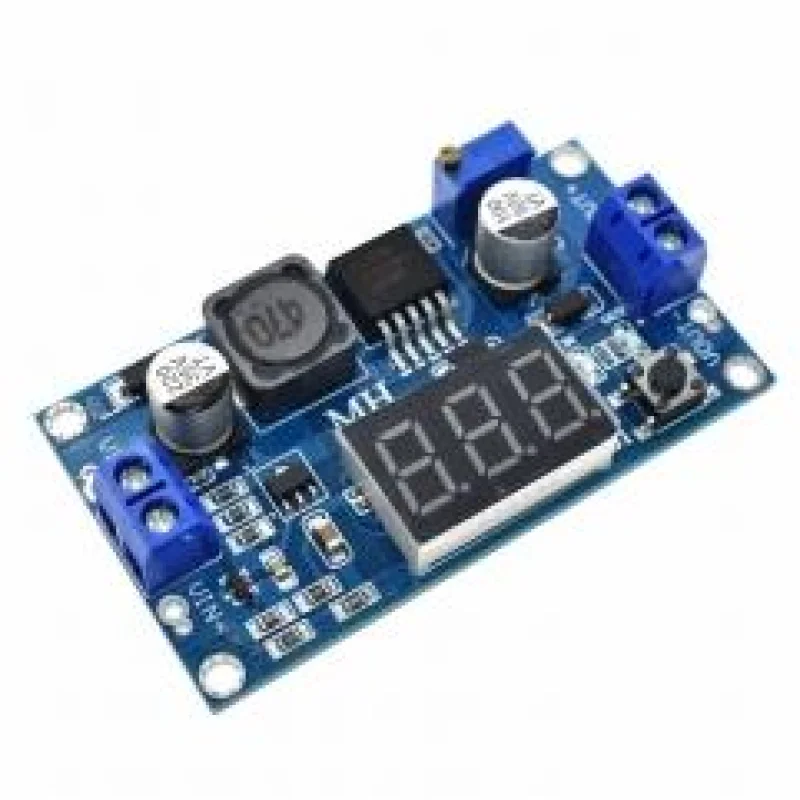

The DC-DC Adjustable Boost Converter With Display 4 A (4.332 V to 552 V) is a non-isolated step-up voltage regulator designed to increase DC input voltage to a higher adjustable output level. It supports an input range of 4.332 V DC and provides an adjustable output from 552 V DC, with up to 4 A input current capability. The integrated display enables convenient voltage monitoring during setup and operation. Operating at a switching frequency of 400 kHz, the module achieves conversion efficiency up to 94% with low output ripple and stable voltage regulation. It is suitable for battery-powered systems, electronic prototypes, embedded applications, and adjustable DC power supply projects.
Features
- Integrated Display: Digital voltage display for real-time monitoring and adjustment
- DC-DC Boost Topology: Non-isolated step-up switching converter architecture
- Input Voltage Range: 4.332 V DC
- Output Voltage Adjustment: Adjustable 552 V DC via onboard potentiometer
- Input Current Capability: Up to 4 A maximum input current
- Conversion Efficiency: Up to 94% peak efficiency under optimal conditions
- Output Stability: 50 mV ripple with 0.5% load and voltage regulation
- Switching Frequency: 400 kHz high-frequency operation for efficient power conversion
Specifications
-
Module Type | DC-DC step-up (Boost) converter with integrated digital display
-
Input Voltage Range | 4.332 V DC
-
Output Voltage Range | Adjustable 552 V DC
-
Maximum Input Current | 4 A
-
Conversion Efficiency | Up to 94% (typical efficiency approximately 85%)
-
Switching Frequency | 400 kHz
-
Output Ripple | 50 mV
-
Load Regulation | 0.5%
-
Voltage Regulation Accuracy | 0.5%
-
Rectification Method | Non-synchronous rectification
-
Operating Temperature Range | -40 C to +85 C
-
Display Function | Digital voltage display for input/output voltage monitoring and adjustment
Links
- XL6009 Datasheet
