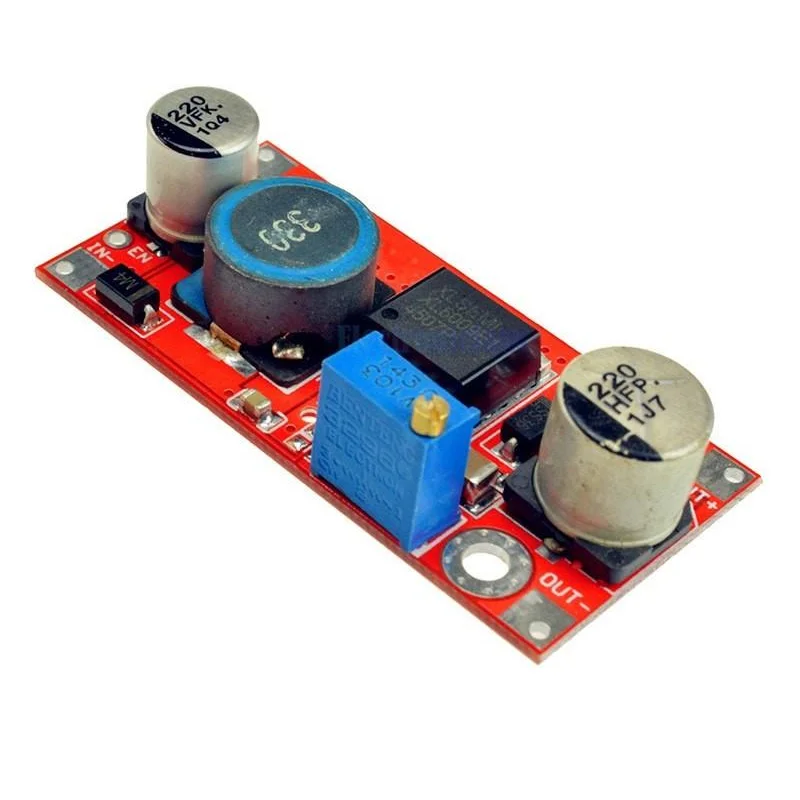

The DC-DC Adjustable Boost Converter 4 A (532 V to 535 V) Module is a step-up switching voltage regulator designed to increase DC input voltage to a higher adjustable DC output level. It operates over a 532 V DC input range and provides an output adjustable from 535 V DC with a maximum current capability of up to 4 A under suitable thermal conditions. The module uses high-frequency switching technology based on the XL6009 regulator architecture, enabling efficient power conversion with up to approximately 94% efficiency. It is suitable for powering electronic circuits, battery-operated systems, and embedded applications requiring elevated and adjustable DC voltage. The compact PCB design supports integration into space-constrained electronic assemblies.
Feature
- DC-DC Boost Topology: High-efficiency step-up switching regulator based on XL6009 architecture
- Input Voltage Range: 532 V DC
- Output Voltage Adjustment: 535 V DC adjustable via onboard potentiometer
- Output Current Capability: Up to 4 A under suitable thermal conditions
- Conversion Efficiency: Up to 94% under optimized load conditions
- Switching Frequency: High-frequency operation for stable energy conversion
- Protection Features: No integrated reverse polarity protection
- Module Construction: Compact PCB-based boost converter design for embedded applications
Specifications
-
Input Voltage Range | 532 V DC
-
Output Voltage Range | Adjustable 535 V DC (via onboard potentiometer)
-
Output Current | Up to 4 A under suitable thermal conditions
-
Conversion Efficiency | Up to 94% under optimized load operation
-
Regulator Type | DC-DC step-up (Boost) switching converter (XL6009 architecture)
-
Switching Frequency | High-frequency operation for stable DC-DC conversion
-
Output Adjustment Method | Onboard potentiometer for continuous voltage tuning
-
Electrical Protection | No reverse polarity protection integrated
-
Module Construction | PCB-based compact boost converter design
-
Application Area | Embedded electronics, battery systems, and adjustable DC power supply applications
