Description

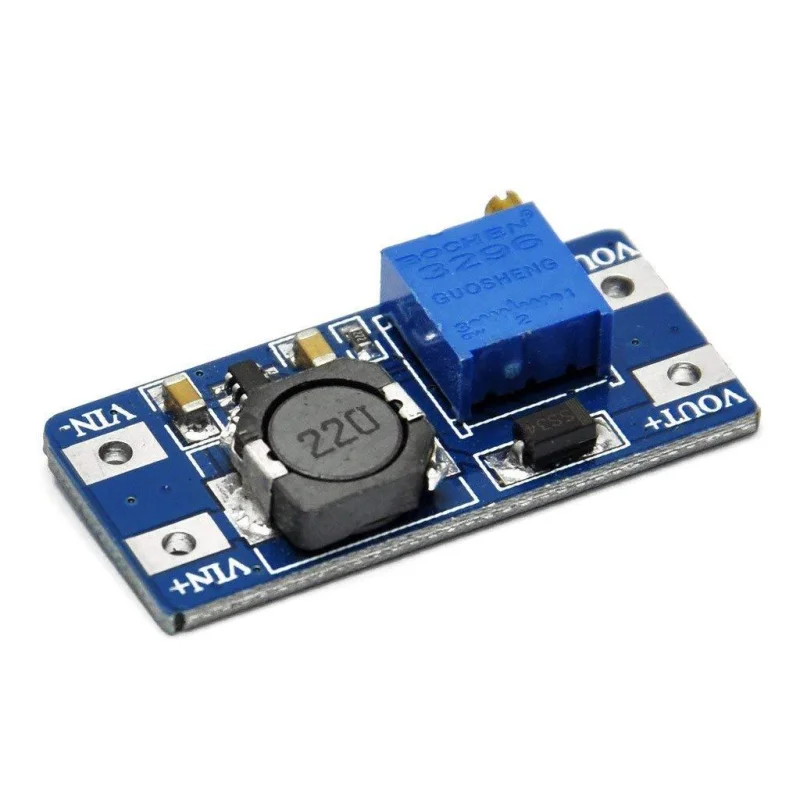

The DC-DC Adjustable Boost Converter 2 A (224 V to 28 V) Module is a step-up voltage regulation device designed to convert a lower DC input voltage into a higher adjustable DC output. It supports an input range of 224 V DC and provides an output voltage adjustable up to 28 V DC, with a maximum output current of 2 A under suitable conditions. The module operates with high conversion efficiency up to approximately 93%, enabling efficient power transfer in low-voltage systems. It is suitable for portable electronics, battery-powered devices, and embedded applications requiring elevated DC voltage. The compact PCB design allows integration into space-constrained electronic assemblies.
Features
- DC-DC Boost Topology: High-efficiency step-up switching regulator architecture
- Input Voltage Range: 224 V DC
- Output Voltage Adjustment: Up to 28 V DC via onboard potentiometer control
- Output Current Capability: Up to 2 A under appropriate thermal conditions
- Conversion Efficiency: Up to 93% under optimized load operation
- Switching Frequency: High-frequency DC-DC operation for compact energy conversion
- Module Construction: PCB-based compact boost converter design
- Application Compatibility: Battery-powered systems, portable electronics, and embedded DC applications
Specifications
-
Input Voltage Range | 224 V DC
-
Output Voltage Range | Adjustable up to 28 V DC (via onboard potentiometer)
-
Output Current | Up to 2 A under appropriate thermal conditions
-
Conversion Efficiency | Up to 93% under optimal load operation
-
Regulator Type | DC-DC step-up (Boost) switching converter
-
Switching Frequency | High-frequency operation for compact energy conversion
-
Output Stability | Voltage adjustable with fine-tuning potentiometer control
-
Module Construction | PCB-based compact boost converter design
-
Thermal Requirements | Heat dissipation recommended under high load operation
-
Application Area | Battery-powered systems, embedded electronics, and portable DC power applications
Links
- MT3608 Data Sheet
