Description
Description

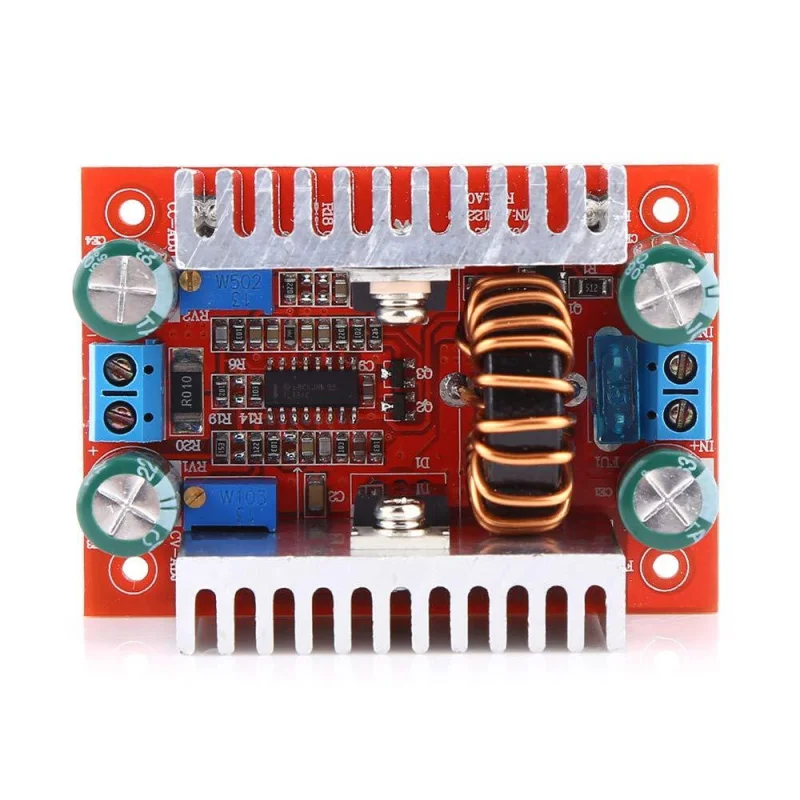

The DC-DC 400 W Boost Converter 15 A (8.550 V to 1060 V) Module is a high-power step-up voltage regulator designed to increase DC input voltage to a higher adjustable DC output. It supports an input range of 8.550 V DC and provides an adjustable output from 1060 V DC, with output current capability up to 15 A under appropriate thermal conditions. The module achieves conversion efficiency of up to 96%, making it suitable for high-power DC applications. It is commonly used in battery systems, industrial equipment, motor control projects, and power conversion systems requiring elevated DC voltage. For high-current operation, additional heat dissipation is recommended to maintain stable performance.
Features
- DC-DC Boost Topology: High-power step-up converter for elevated DC output voltage
- Input Voltage Range: 8.550 V DC
- Output Voltage Range: Adjustable 1060 V DC
- Output Current Capability: Up to 15 A under appropriate thermal conditions
- Power Rating: Up to 400 W maximum output power
- Conversion Efficiency: Up to 96% under optimized operating conditions
- Thermal Management: Supports external heatsink installation for high-current operation
- Protection Notice: No reverse polarity protection; correct input polarity required
Specifications
-
Module Type | DC-DC step-up (Boost) converter
-
Rated Power | 400 W maximum
-
Input Voltage Range | 8.550 V DC
-
Output Voltage Range | Adjustable 1060 V DC
-
Maximum Output Current | 15 A
-
Conversion Efficiency | Up to 96%
-
Voltage Regulation Method | Adjustable output via onboard potentiometer
-
Thermal Management | External heatsink recommended for high-current operation
-
Electrical Isolation | Non-isolated converter design
-
Protection Features | No reverse polarity protection
-
Application Area | Battery systems, motor drives, industrial electronics, and DC power conversion projects
-
Module Construction | High-power PCB-based boost converter module
