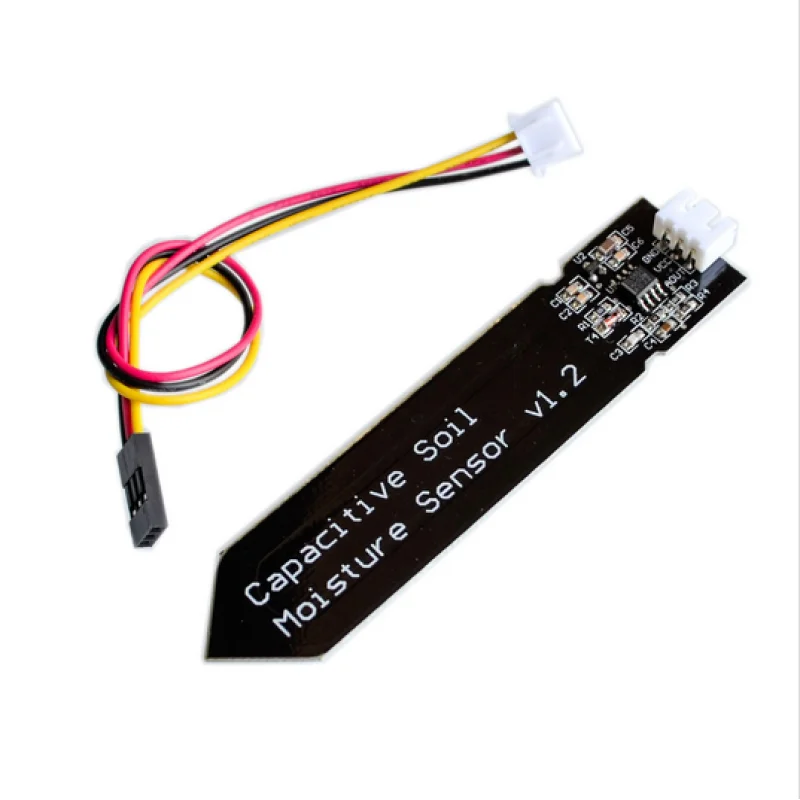

Capacitive Analog Soil Moisture Sensor 3.35.5V Output

Description

Description

The Capacitive Analog Soil Moisture Sensor is designed to measure soil moisture levels for automated irrigation and plant monitoring systems. It operates by detecting changes in capacitance caused by water content in the soil, eliminating corrosion issues common in resistive sensors. The sensor provides a stable analog voltage output and operates from 3.3 to 5.5 V, making it compatible with both 3.3 V and 5 V microcontrollers. An onboard voltage regulator ensures reliable performance across the full supply range. It is suitable for home gardening, educational projects, and smart agriculture prototypes.

Features

• Capacitive soil moisture sensing technology

• Analog voltage output signal

• Operating voltage range 3.35.5 V

• Corrosion-free PCB electrodes

• Onboard voltage regulator

• Compatible with 3.3 V and 5 V MCUs

• Gravity 3-pin interface support

• Stable output for long-term use

Specifications

• Supply Voltage: 3.35.5 V DC
• Output Voltage: 03.0 V DC
• Output Type: Analog
• Sensing Method: Capacitive
• Interface: XH2.54-3P
• Electrode Material: PCB Copper
• Sensor Length: 99 mm
• Sensor Width: 23 mm
• Cable Length: 210 mm
• Operating Environment: Soil moisture detection
• Compatibility: Arduino, ESP32, ESP8266, ADC-equipped Raspberry Pi
