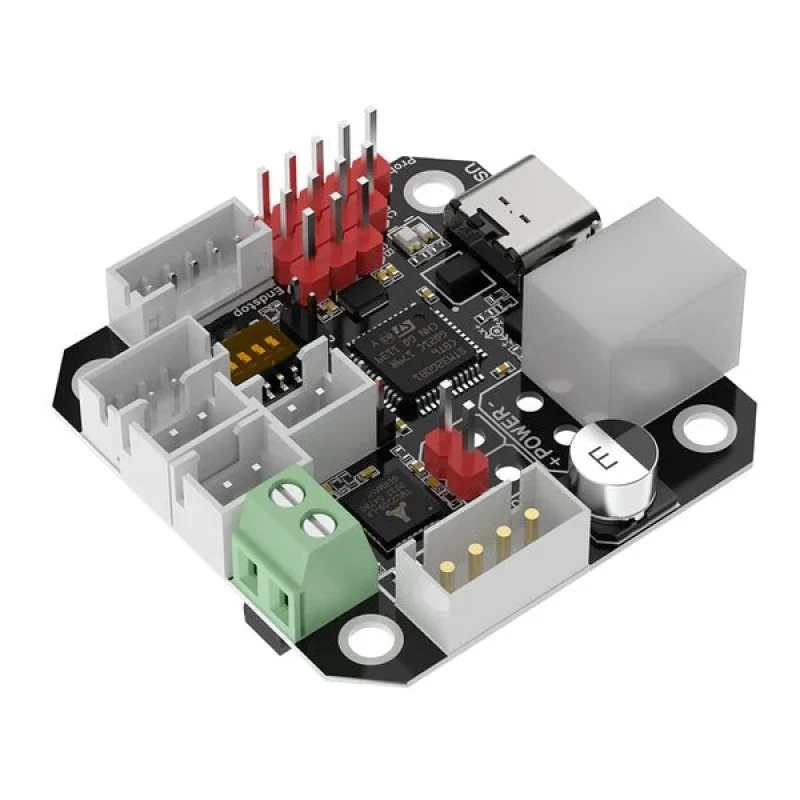

BTT EBB42 CAN bus Klipper Expansion PCB

Description

Please read and note the disclaimer provided by BTT when using the CAN Bus before purchase and installation. Here.Want to learn a little more about CANbus? Check out our YouTube introduction to CAN.

Specs:

• Version: v1.2
• MCU: ARM Cortex-M0+ STM32G0B1CBT6 64MHz with FDCAN bus
• Stepper Dirver: Onboard TMC2209 in UART mode, UART address: 00, Rsense: 0.11R
• Onboard Accelerometer Sensor: ADXL345
• Onboard Temperature IC: Max31865 Select 2 / 4 lines PT100 / PT1000 by DIP switch (no Max31865 verson have not this feature)
• Input Voltage: DC12V-DC24V 6A
• Logic Voltage: DC 3.3V
• Heating Interface: Hotend (E0), maximum output current: 5A
• Fan Interfaces: two CNC fans (FAN0, FAN1)
• Maximum Output Current of Fan Interface: 1A, Peak Value 1.5A
• Expansion Interfaces: EndStop, I2C, Probe, RGB, PT100/PT1000, USB interface, CAN Interface
• Temperature Sensor Interface Optional: 1 Channel 100K NTC or PT1000(TH0), 1 Channel PT100/PT1000
• USB Communication Interface: USB-Type-C
• DC 5V Maximum Output Current: 1A

Additional details can be found on GitHub.
