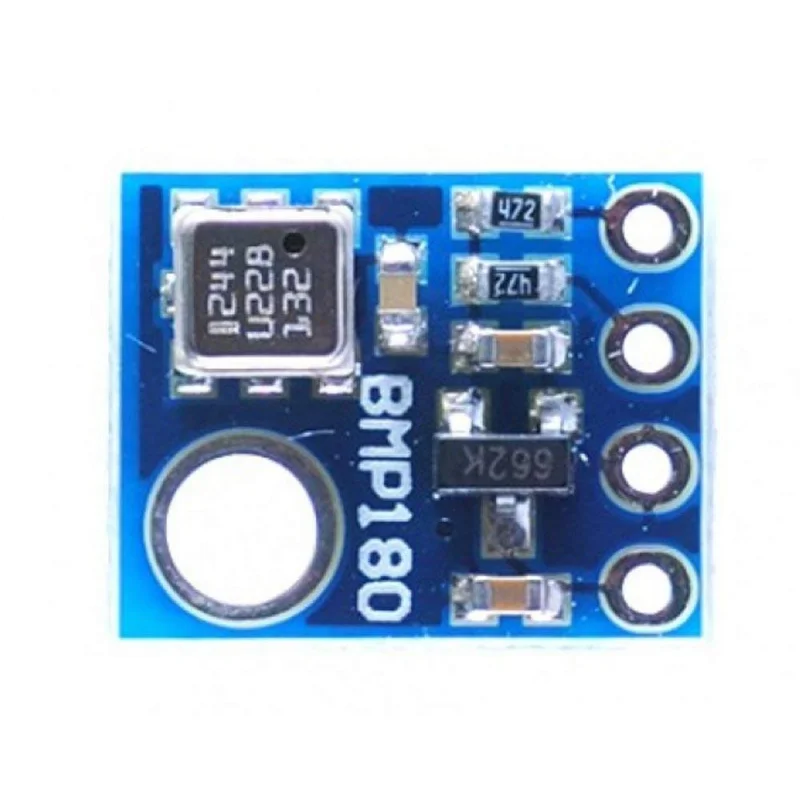

BMP180 Barometric Pressure Sensor Module – I2C Interface

Description

Description

The BMP180 Barometric Pressure Sensor is a compact precision module for measuring atmospheric pressure, temperature, and altitude. It features a pressure range of 3001100 hPa, low noise up to 0.02 hPa, and operates at 1.83.6 V with minimal power consumption. The sensor communicates via a high-speed I2C interface and is fully calibrated for accurate readings. With dimensions of 21 18 mm and a weight of 1.18 g, it is suitable for embedded systems, weather monitoring, altimeters, and IoT applications requiring precise pressure and altitude data.

Features

• Barometric Pressure Sensor with a range of 3001100 hPa

• Temperature Measurement integrated for environmental sensing

• Altitude Calculation capability based on pressure variations

• I2C Communication Interface with up to 3.5 MHz speed

• Low Noise Performance of up to 0.02 hPa (17 cm altitude)

• Operating Voltage of 1.83.6 V with minimal power consumption

• Fully Calibrated Sensor for accurate pressure and temperature readings

• Compact PCB Dimensions of 21 18 mm and weight of 1.18 g

Specifications

• Sensor Type | Barometric Pressure and Temperature Sensor

• Model | BMP180

• Pressure Range | 3001100 hPa

• Temperature Range | -40 to +85 C

• Altitude Range | -500 to +9000 m (calculated from pressure)

• Resolution | Pressure: 0.01 hPa, Temperature: 0.1 C

• Noise Level | 0.02 hPa (17 cm altitude)

• Operating Voltage | 1.83.6 V

• Power Consumption | 0.5 A at 1 Hz

• Communication Interface | I2C, max speed 3.5 MHz

• PCB Dimensions | Approx. 21 18 mm

• Weight | 1.18 g
