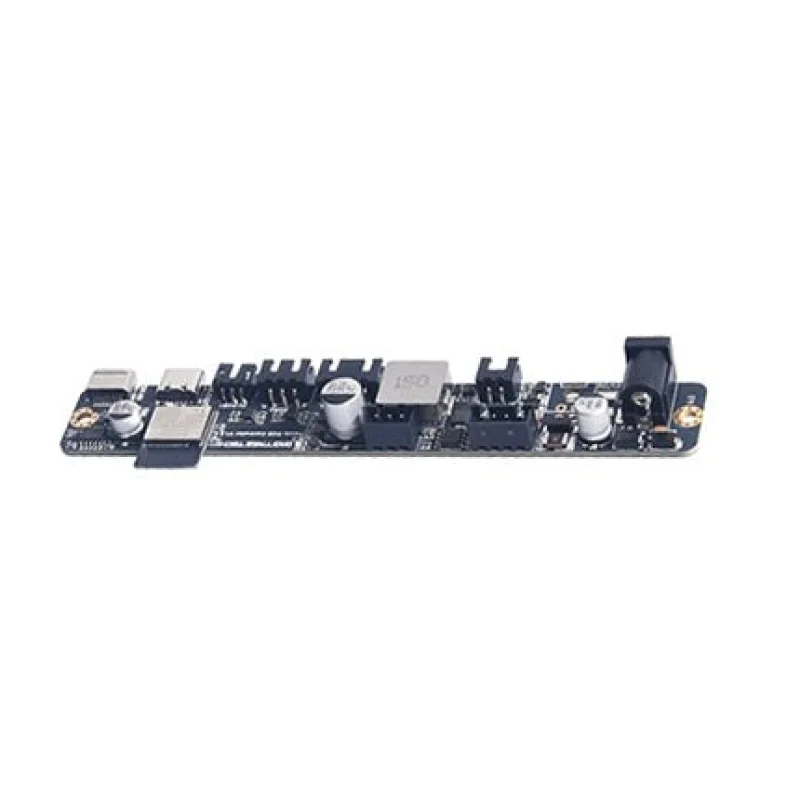

BIQU Panda RGB Controller

Description

Product Overview

The Panda RGB Controller enables wireless control of up to two RGB light strips. You can set them to a custom display pattern or synchronize them with your 3D printer’s activity.

Product Features

• Onboard multiple light strip connectors, with included adapter cables for customer convenience.

• Reserved fast programming interface for easy DIY firmware flashing and future firmware upgrades.

• Onboard ESP32 WIFI module, supporting wireless control.

Product Specifications

• Control Board Size: 100mm*25mm

• Main Control: ESP32-C3-MINI

• Power Input: DC5.5×2.1: 24V 3A

• Logic Voltage: 3.3V

• 5V RGB Output Interface: PH2.0 3P: 5V 1.5A (peak), XH2.54 3P: 5V 2A (peak)

• 24V RGB Output Interface: Two XH2.54 4P: 24V 2A (peak)

• 24V Output Interface: XH2.54 2P: 24V 1.5A (peak)

Product Interface Diagram

For more information check out the BTT Wiki
