Description

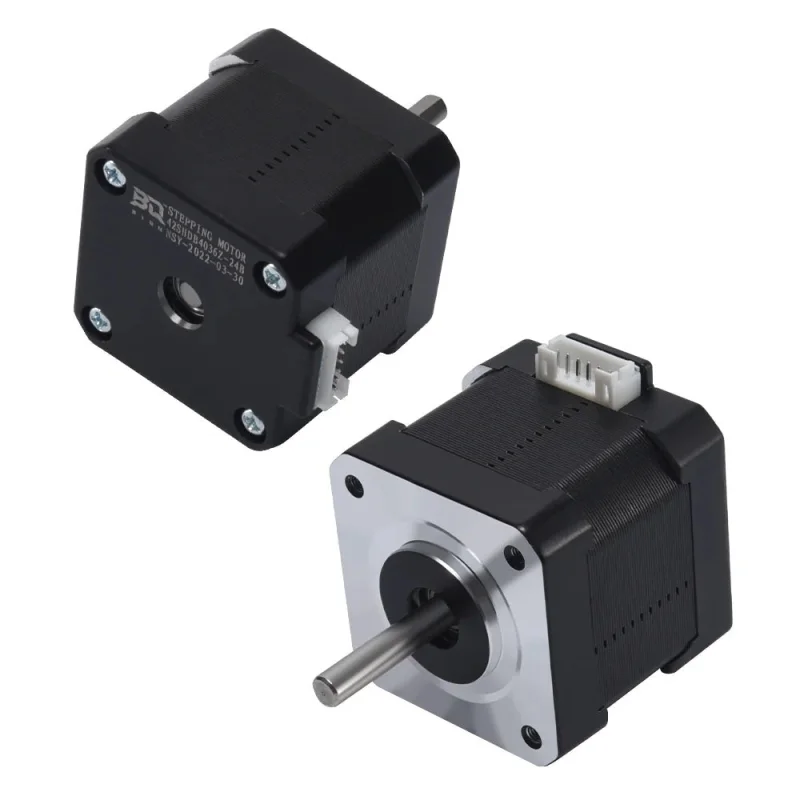

This is a great standard Nema 17 motor, insulation class F means it can be used safely in enclosed spaces. This is our standard spec for our Rook printer kits, but works great on most 3D printers. Comes with a 1m long motor harness.
Specifications
High:40mm
Shaft length:22mm
Color:Black
Phase number:2
Rated voltage:DC 3.6 Vs
Phase resistance:3.6*(1+10%) / phase
Steeringshaft extension):A-AB-B-clockwise
Maximum no-load operation frequency:1000 PPS
Electrical strength:AC600V/1mA/1S
Moment of inertia:73 g.cm
Holding torque:450mN.m
Step angle:1.8
Rated current:DC 1.0a/phase
Phase inductance1kHz:8X1+20%MH/phase
Positioning torque:25mV.m REF.
Maximum no-load starting frequency:800 PPS
Insulation resistance:100MDC 500V
Insulation class:Class F
Quality:0.28Kg REF
Please note: These are categorized as “high temperature” motors, they have a higher insulation class than standard motors and are intended to perform better at higher currents and higher ambient temperatures. Howeverrunning at or near full amperage in environments higher than 40Cwill impact longevity. We generally recommend for higher temperature environments to lower your amperage to increase the life of the motor.
