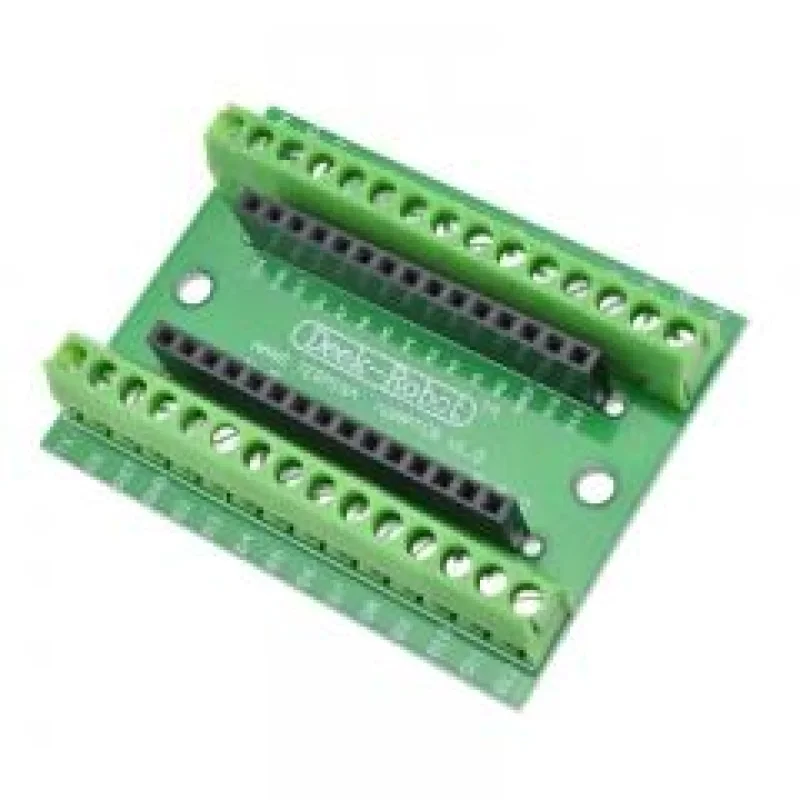

The Arduino Nano Terminal Expansion Shield is a practical interface board designed to provide secure screw terminal access to all Arduino Nano pins for easy and organized wiring. It allows direct connection of sensors, modules, actuators, and power lines without soldering to the Nano itself. Each digital, analog, power, and communication pin is routed to clearly labeled screw terminals, ensuring reliable and maintainable connections. Its compact design makes it ideal for rapid prototyping, industrial testing, and semi-permanent embedded installations.
Features
- Full breakout access for all Arduino Nano pins
- Secure screw terminal connections
- Clearly labeled terminals for easier debugging
- Supports digital, analog, and communication pins
- Direct Nano plug-in slot for easy installation
- Compact PCB design for space-saving applications
- Organized power distribution access
- Tool-assisted secure wiring
- Simplifies module and sensor connections
- Reduces loose wiring problems
- Suitable for testing and permanent setups
- Strong mechanical stability
- Easy replacement of connected devices
- Ideal for industrial and educational use
Specifications
- Product Type: Terminal Expansion Shield
- Compatibility: Arduino Nano and Compatible Boards
- Connection Type: Screw Terminals
- Logic Voltage: 5V (Nano Compatible)
- Mounting Type: Nano Plug-In Board
- Pin Access: Digital, Analog, Power, UART, SPI, IC
- Terminal Type: Screw Clamp
- Power Distribution: VIN, 5V, 3.3V, GND
- PCB Material: FR-4
- PCB Dimensions: Approx. 57mm 46mm
- Application Type: Secure Wiring and Expansion
