Description
Description

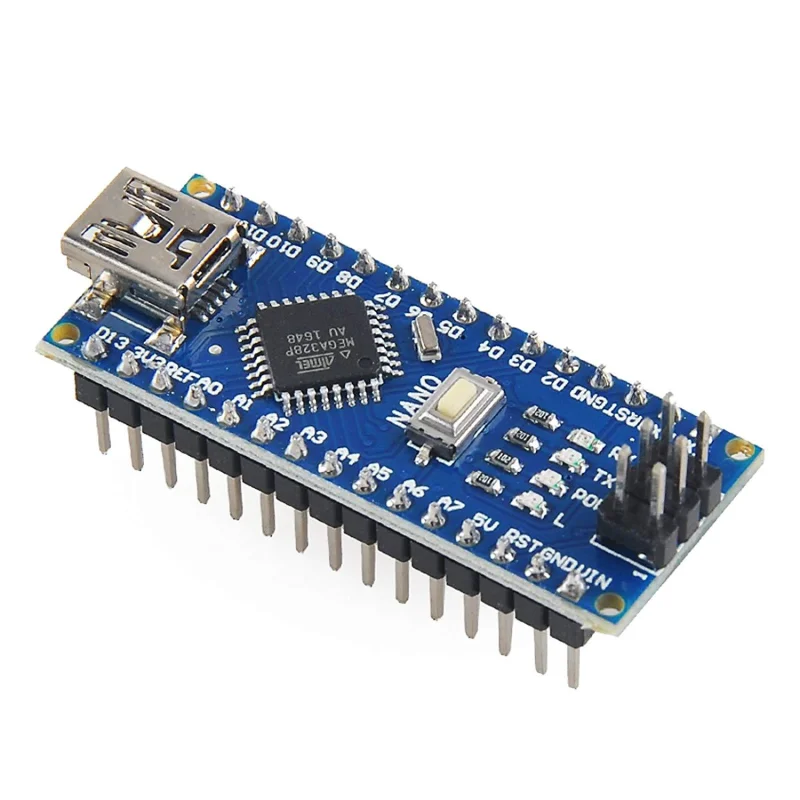

The Arduino Nano Clone is a compact development board designed for embedded electronics and space-limited projects. It performs the same core functions as the Arduino UNO while occupying a significantly smaller physical footprint. Its small form factor allows easier integration into dense circuits and portable systems. The board delivers stable operation and maintains full compatibility with the Arduino IDE and common Arduino libraries. It is suitable for robotics control, compact prototypes, IoT modules, and academic microcontroller applications. Please note that you will need to download the ft232 driverto be able to program this board using the Arduino IDE.
Features
- ATmega328P microcontroller for fast and stable program execution
- Compatibility with Arduino IDE
- Stable 5 V operation with integrated power regulator
- Digital and PWM I/O pins for flexible device control
- Multiple analog inputs for precise sensor reading
- USB Type-B interface for easy programming and serial communication
- Standard layout for easy integration and project expansion
Specifications
- Operating Voltage : 5 V DC
- Input Voltage : 712 V
- Microcontroller : ATmega328P
- Clock Frequency : 16 MHz
- Flash Memory : 32 KB
- Digital I O Pins : 14 IO (6 PWM)
- Analog Input Pins : 8
- Communication Interfaces : SPI I2C UART
- USB Interface : Mini B USB
- Dimensions : 45 18 mm
- Weight : 7 g
- Board Connector Type : 2.54 mm pin headers
Links
- Arduino IDE Download
- ATmega328/P Datahseet
- Arduino Nano Clone Driver for Windows
- Arduino Nano 3D Model
- Arduino Nano Case
Toutrials
- Voltaat tutorials for Arduino
- Voltaat Youtube Channel
