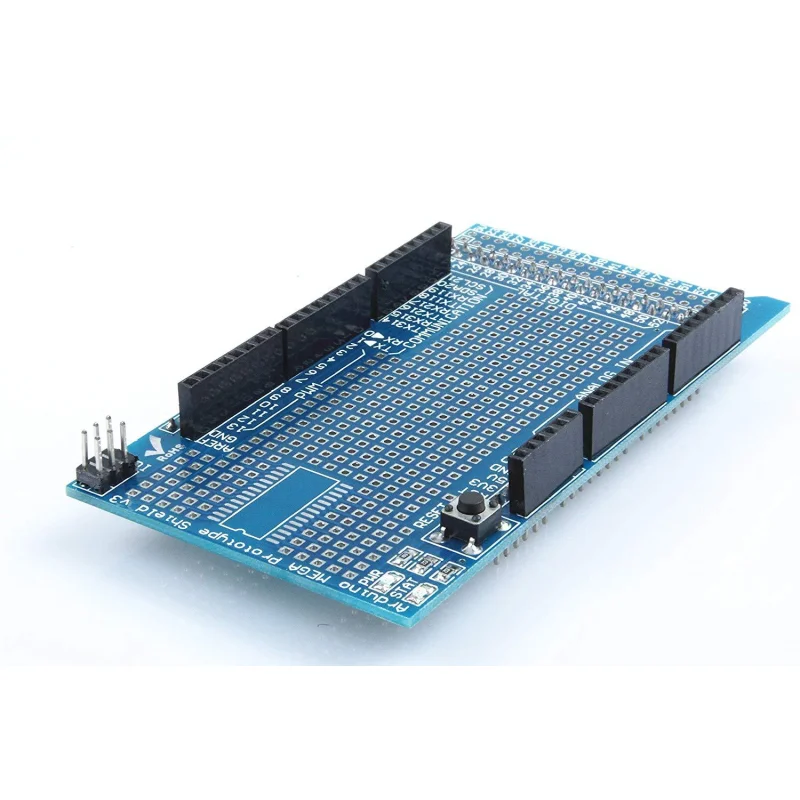

Arduino Mega Prototype Shield Expansion Board

Description

Description

The Arduino Mega Prototype Shield is a dedicated expansion board designed for building and testing custom circuits directly on top of an Arduino Mega. It provides an extended through-hole prototyping area for larger and more complex circuit designs, making it ideal for advanced embedded systems and robotics applications. The shield supports standard DIP integrated circuits and includes organized power and ground distribution rails for simplified wiring. With direct stacking compatibility and full access to the Arduino Mega I/O pins, it is an efficient solution for rapid hardware development and permanent prototyping.

Features

• Large prototyping area for complex custom circuits
• Compatible with through-hole components
• Supports standard DIP ICs
• Dedicated power and ground rails for organized wiring
• Full access to all Arduino Mega I/O pins
• Direct stackable shield design
• Suitable for larger embedded projects
• Simplifies hardware testing and debugging
• Strong PCB structure for repeated use
• Easy soldering layout
• Breadboard alternative for permanent designs
• Ideal for multi-module systems
• Suitable for educational and industrial projects
• Supports complex robotics development

Specifications

• Product Type: Prototype Expansion Shield

• Compatibility: Arduino Mega and Compatible Boards

• Prototyping Area: Through-Hole Grid Layout

• IC Support: Standard DIP Packages

• Logic Voltage: 5V (Arduino Compatible)

• Power Rails: 5V, 3.3V, GND

• Header Type: Standard Arduino Mega Pin Headers

• I/O Access: Full Arduino Mega Pin Access

• Mounting Type: Arduino Shield Stackable

• PCB Material: FR-4

• Dimensions: 101mm 53mm

• Application Type: Advanced Embedded Prototyping
