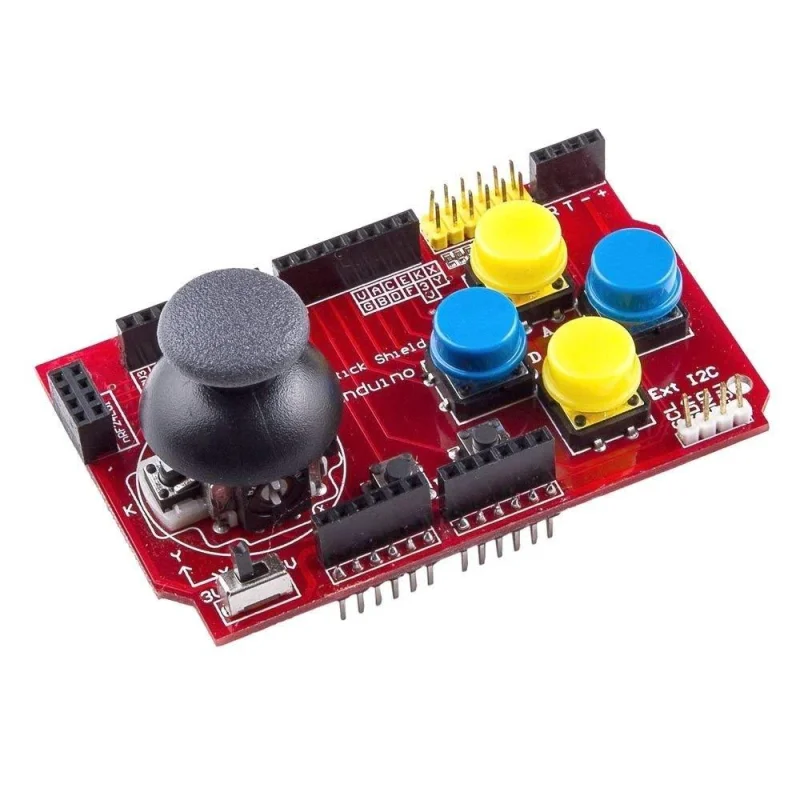

Arduino Joystick Shield Dual Axis Analog Control with Push Buttons

Description

Description

The Joystick Shield for Arduino provides an intuitive input interface for controlling robotics, games, and interactive projects.
It features a dual-axis analog joystick with an integrated push-button switch.
Additional tactile buttons are included for extended user input functionality.
The shield stacks directly onto compatible Arduino boards using standard headers.
It is suitable for motion control, menu navigation, and embedded user interface applications.

Features

• Dual-Axis Analog Joystick for X and Y position control

• Integrated Joystick Push Button for additional input

• Multiple Tactile Buttons for expanded control options

• Arduino-Compatible Shield Design for direct stacking

• Analog and Digital Output Signals for flexible interfacing

• Compact PCB Layout suitable for prototyping

Specifications

• Product Type :Input Interface Shield

• Control Type :Analog joystick and digital buttons

• Joystick Axes :2 (X and Y)

• Push Buttons :5 or more (depending on model)

• Logic Voltage :5 V (Arduino compatible)

• Connection Interface :Arduino headers

• Mounting Type :Arduino shield stackable

• Dimensions :87 mm 54 mm
