Description

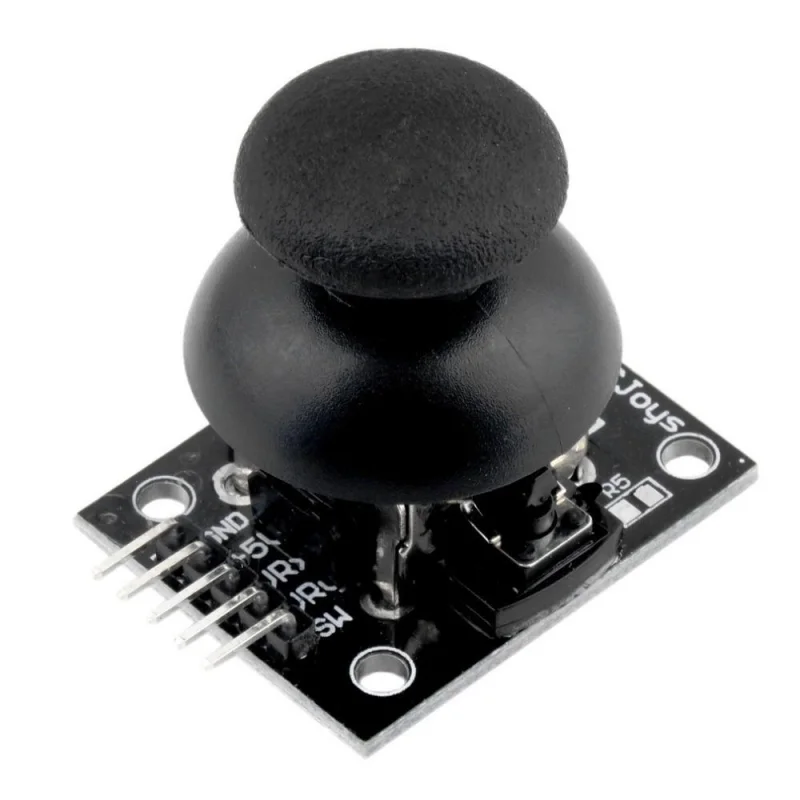

The analog joystick module is an input device designed for directional control in embedded systems and interactive applications. It features two potentiometers of approximately 10k for X and Y axis movement, providing variable analog voltage output based on position. The module also includes an integrated push-button switch activated by pressing the joystick. Operating at 5V, it outputs a centered voltage of around 2.5V, which varies between 0V and 5V during movement. Suitable for robotics, gaming interfaces, and motion control systems.
Features
- Dual-axis analog joystick for X and Y control
- Two ~10k potentiometers for position sensing
- Analog voltage output proportional to movement
- Center position output approximately 2.5V
- Output range from 0V to 5V
- Integrated push-button switch for selection input
- 5V operating voltage compatible with microcontrollers
- Smooth and responsive directional control
- Compact module design for easy integration
- Standard pin interface for simple connection
- Stable analog signal output for accurate readings
- Suitable for Arduino and embedded systems
Specifications
- Product Type: Analog joystick module
- Control Type: Dual-axis potentiometer + push button
- Potentiometer Resistance: ~10k per axis
- Operating Voltage: 5V DC
- Output Type: Analog (X, Y), Digital (switch)
- Center Voltage: ~2.5V
- Output Voltage Range: 05V
- Number of Axes: 2 (X and Y)
- Switch Type: Integrated push button
- Connection Interface: Pin header
- Mounting Type: PCB module
- Dimensions: Approx. 40mm 26mm 32mm
- Operating Temperature: 10C to 60C
- Compatibility: Arduino, microcontrollers
Links
- Analog Joystick Module 3D Model
- Analog Joystick Module Manual
Tutorials
- Introduction to Dual Axis XY Joystick for Arduino RJT45
