Description
Description

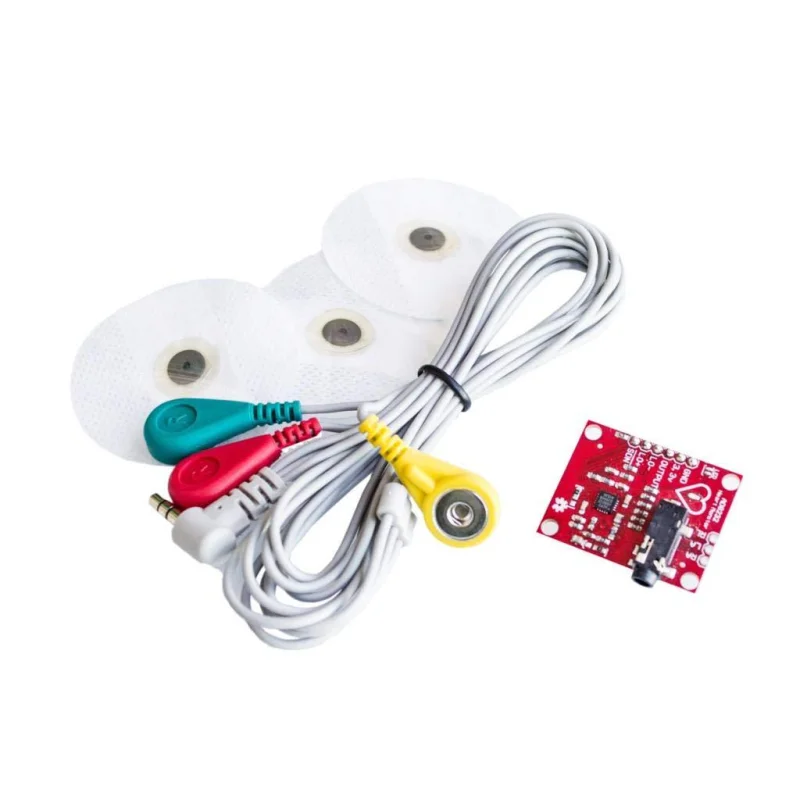

The AD8232 ECG Heart Rate Monitor Module is a compact analog front-end board designed to measure and condition cardiac electrical signals. Based on the AD8232 IC, it integrates signal amplification, filtering, and leads-off detection to generate a stable analog ECG output. The module operates at 3.3V DC and features a 3.5 mm jack for standard biomedical electrode pads. Built for reliable signal acquisition with reduced motion artifacts, it is suitable for biomedical experiments, wearable prototypes, and educational ECG monitoring systems.
Features
- AD8232 analog front-end IC
- Single-lead ECG signal acquisition
- Integrated signal amplification and filtering
- Analog voltage output for MCU interfacing
- Leads-off detection circuitry
- 3.5 mm biomedical electrode connector
- 3.3V DC operating voltage
- Shutdown control for low-power mode
- Onboard LED status indicator
- Motion artifact and noise reduction
- Compact PCB for wearable integration
- Compatible with Arduino and 3.3V MCUs
Specifications
- Operating Voltage: 3.3V DC
- Operating Current: 170 A (typical)
- ECG Configuration: Single Lead
- Output Type: Analog Voltage Output
- Output Voltage Range: 0 3.3V
- High-Pass Filter Cutoff: 0.5 Hz (typical)
- Low-Pass Filter Cutoff: 40 Hz (typical)
- CMRR: 80 dB (typical)
- Leads-Off Detection: Supported
- Connector Type: 3.5 mm Audio Jack
- Operating Temperature: -40 C to 85 C
- PCB Dimensions: 36 mm 30 mm
Links
- AD8232 Datasheet
- AD8232 ECG Heart Rate Monitor Board 3D Model
Tutorials
- Arduino ECG Heart Rate Monitor AD8232 Demo
- ECG Raspberry Pi + AD8232+ADS1115 Software
