Description

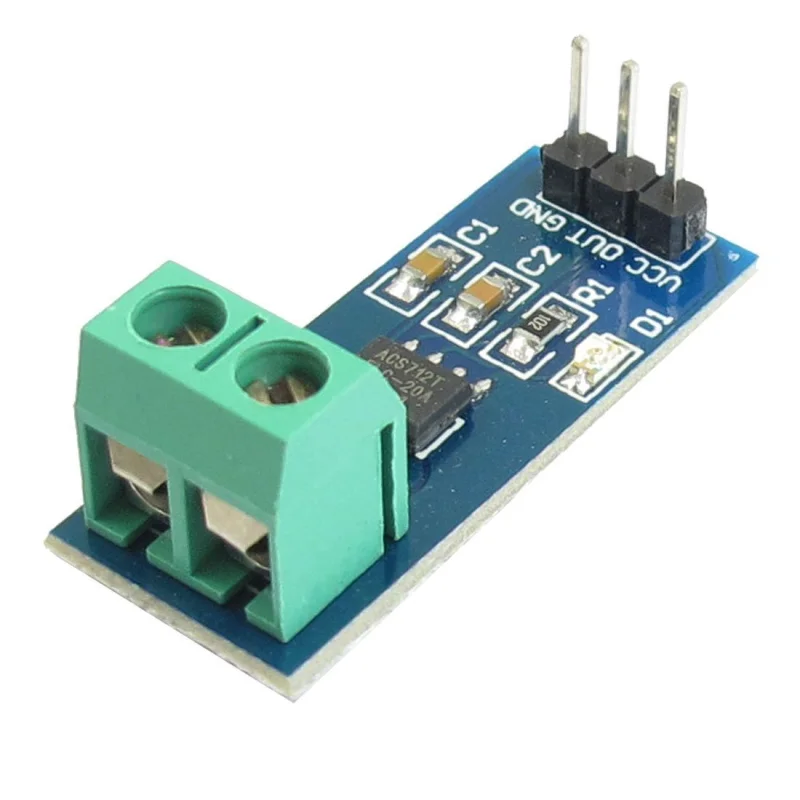

The ACS712ELCTR-20A Hall Effect Current Sensor Module is designed for precise AC and DC current measurement up to 20A. It utilizes a fully integrated Hall-effect linear sensor that provides an analog voltage output proportional to the sensed current at 100 mV/A sensitivity. Operating at 5V DC, the module outputs VCC/2 when no current is present, enabling bidirectional current detection. Its compact breakout design ensures easy integration with Arduino and other 5V microcontroller platforms for monitoring, control, and protection applications.
Features
- ACS712ELCTR-20A Hall-effect current sensor
- Measures AC and DC current up to 20A
- 100 mV/A output sensitivity
- Analog voltage output proportional to current
- 5V DC operating voltage
- VCC/2 zero-current output level
- Bidirectional current measurement capability
- Low internal conductor resistance
- Electrical isolation via Hall-effect sensing
- Compact breakout board design
- Compatible with Arduino and 5V MCUs
- Onboard filtering capacitor support
Specifications
- Operating Voltage: 5V DC
- Current Measurement Range: -20A to +20A
- Sensitivity: 100 mV/A
- Zero Current Output Voltage: 2.5V
- Output Type: Analog Voltage
- Sensor Type: Hall Effect Linear
- Internal Conductor Resistance: 1.2 m (typical)
- Bandwidth: 80 kHz (typical)
- Response Time: 5 s
- Isolation Voltage: 2.1 kVRMS
- Operating Temperature: -40C to +85C
- Board Type: Breakout Module
