Description
Description

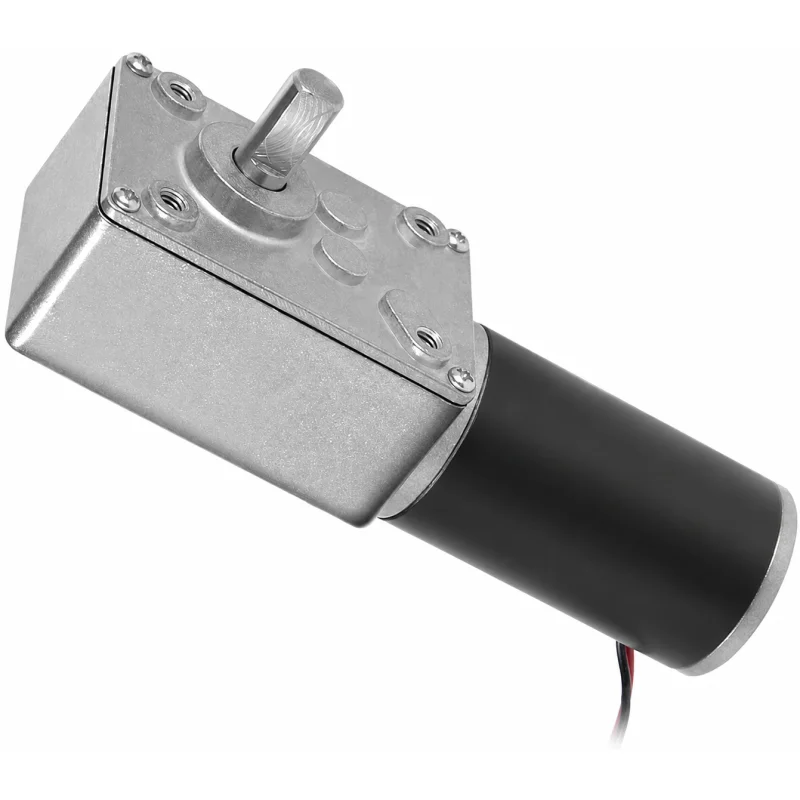

The A58SW31ZY Worm Geared DC Motor is a compact high-torque motor designed for low-speed, high-load applications. It features a worm gear mechanism that provides high torque output and self-locking capability. Operating within a 612V range, it delivers stable performance with controlled speed reduction. Built for reliability, it ensures consistent operation under load conditions. Ideal for robotics, automation systems, smart locks, and mechanical drive applications.
Features
- Worm gear mechanism for high torque output
- Self-locking design prevents reverse motion
- Operating voltage range 612V DC
- Rated speed 75RPM under load
- High stall torque up to 55kgcm
- Metal gearbox construction for durability
- Low no-load current consumption
- Stable operation under continuous load
- Compact integrated gear motor design
- Suitable for automation and robotics systems
Specifications
- Model: A58SW31ZY
- Motor Type: Worm Geared DC Motor
- Operating Voltage: 612V DC
- Test Voltage: 12V DC
- No Load Speed: 100 RPM
- No Load Current: 80 mA
- Rated Load Speed: 75 RPM
- Rated Load Current: 450 mA
- Rated Load Torque: 13 kg.cm
- Rated Power: 21 W
- Stall Torque: 55 kg.cm
- Stall Current: 1.35 A
- Gear Ratio: 50:1
- Weight: 357 g
Links
- A58SW31ZY Worm Geared DC Motor Datasheet
- A58SW31ZY Worm Geared DC Motor 3D Model
- Elegoo research base and Centauri Carbon (magnetic levitation)
Tutorials
- 12v gear reduction motor review (bangood, eBay, Amazon)
Reviews
There are no reviews yet.
