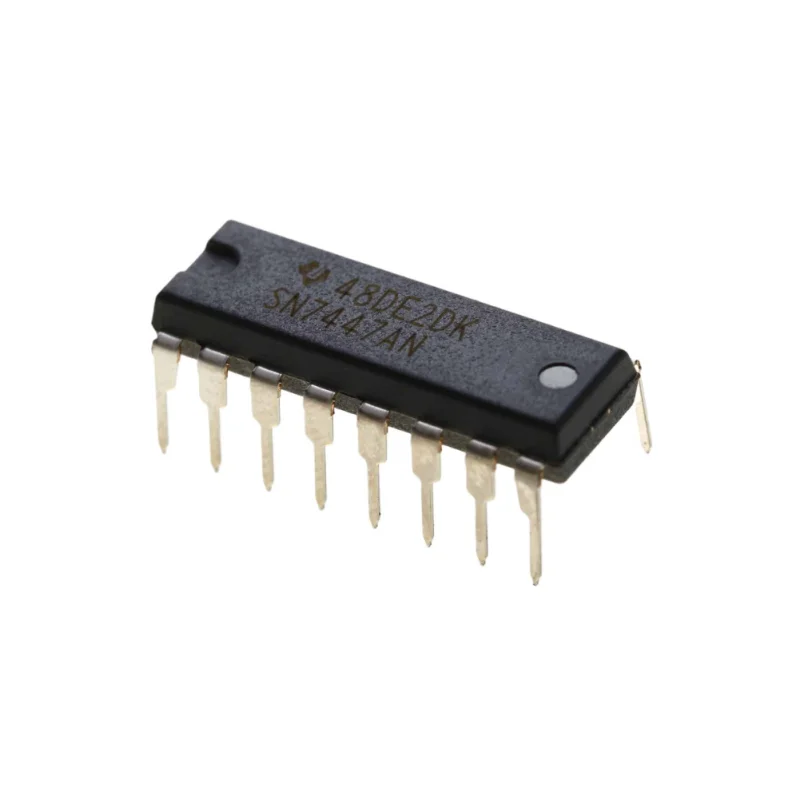

7447 BCD to 7-Segment Decoder/Driver IC DIP-16

Description

Description

The 7447 is a TTL logic integrated circuit designed to convert 4-bit Binary-Coded Decimal (BCD) inputs into control signals for common-anode 7-segment displays. It simplifies numeric display interfacing by decoding BCD values into the correct segment outputs for digits 09. The 7447 features open-collector outputs, making it suitable for directly driving LED display segments with external current-limiting resistors. Operating on a standard 5V TTL supply, it is widely used in counters, clocks, measuring instruments, and digital display panels.

Features

• Converts 4-bit BCD input to 7-segment output
• Designed for common-anode 7-segment displays
• Open-collector output configuration
• Standard TTL logic compatibility
• Single 5V supply operation
• Lamp test input for display verification
• Blanking input for display suppression
• Ripple blanking support for multi-digit displays
• Simplifies numeric display circuits
• Suitable for counters and timers
• DIP-16 through-hole package
• Breadboard-friendly design
• Reliable TTL switching performance
• Ideal for educational and industrial digital systems

Specifications

• Model: 7447

• Device Type: BCD to 7-Segment Decoder/Driver IC

• Logic Family: TTL

• Input Format: 4-Bit BCD

• Display Type: Common-Anode 7-Segment

• Output Type: Open-Collector

• Supply Voltage: 5V

• Maximum Output Sink Current: 24mA per segment

• Propagation Delay (Typical): 25ns

• Package Type: 16-Pin DIP

• Mounting Type: Through-Hole

• Operating Temperature Range: 0C to +70C

• Application Type: Numeric Display Decoding
