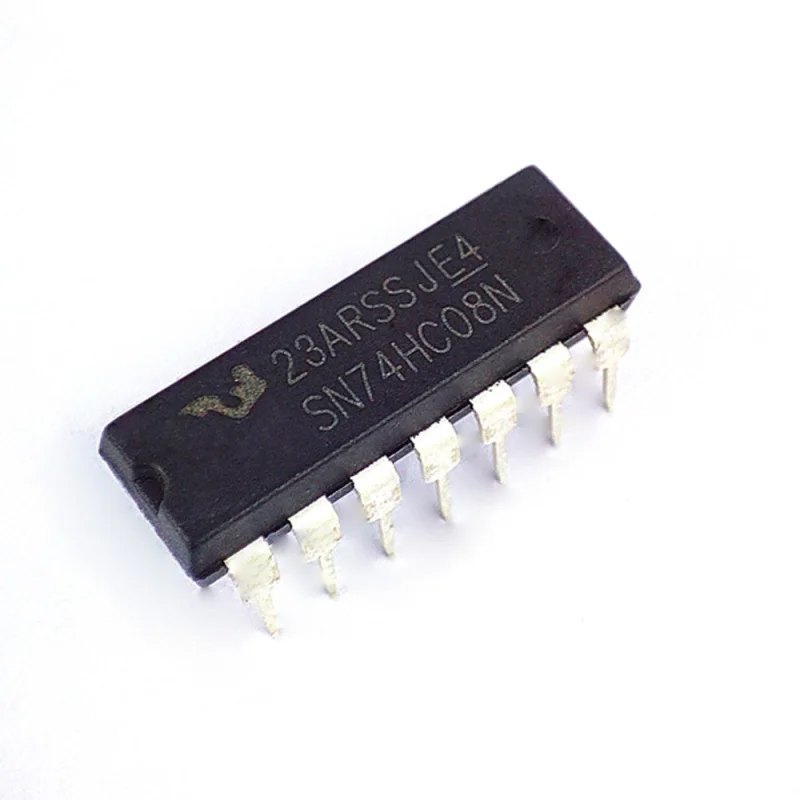

7408 Quad 2-Input AND Gate Logic IC DIP-14

Description

Description

The 7408 is a digital logic integrated circuit that contains four independent 2-input AND gates in a single package. It belongs to the classic TTL (Transistor-Transistor Logic) family and operates from a standard 5V supply. The 7408 performs logical AND operations, where the output is HIGH only when both inputs are HIGH, making it essential for combinational logic, control systems, and digital decision-making circuits. Its DIP-14 package makes it ideal for breadboard prototyping, PCB design, and educational electronics.

Features

• Quad 2-input AND gate configuration

• Four independent AND gates in one IC

• Standard TTL logic compatibility

• Single 5V supply operation

• Fast switching performance

• Low propagation delay

• Suitable for combinational logic circuits

• Independent gate inputs and outputs

• DIP-14 through-hole package

• Breadboard-friendly design

• Low power consumption

• Reliable digital logic performance

• Suitable for signal gating and control circuits

• Easy PCB integration

Specifications

• Model: 7408
• Device Type: Quad 2-Input AND Gate Logic IC
• Logic Family: TTL
• Number of Gates: 4
• Inputs per Gate: 2
• Supply Voltage: 5V
• Input Logic Levels: TTL Compatible
• Output Type: TTL Logic Output
• Propagation Delay (Typical): 10ns
• Power Consumption (Typical): 10mW per gate
• Package Type: 14-Pin DIP
• Mounting Type: Through-Hole
• Operating Temperature Range: 0C to +70C
• Application Type: Digital Logic Processing

Links

• 3D Model
• Datasheet

Tutorials

• 74HC08 7408 quad 2 input AND logic gate IC integrated circuit learning electronics lesson 0046
