Description
Description

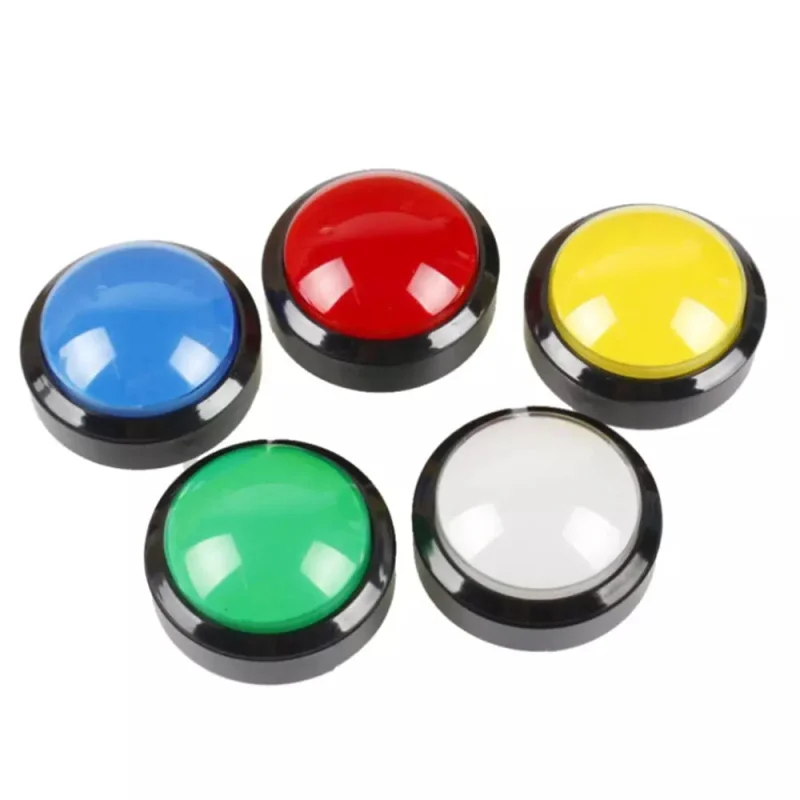

The 60mm Dome Illuminated Push Button is a large-format control switch designed for arcade systems, control panels, and interactive installations. It features an integrated 12V LED indicator and a pre-installed horizontal microswitch for reliable switching performance. The polycarbonate dome ensures high optical clarity and durability, while the adjustable design allows conversion to a low-profile button. Built for long-term use, the microswitch is rated for up to 10 million cycles and can be easily replaced. Ideal for arcade machines, DIY electronics, kiosks, and industrial control interfaces.
Features
- 60mm dome button design for high visibility
- Integrated 12V DC LED illumination
- Pre-installed horizontal microswitch included
- Microswitch rated for 10,000,000 cycles
- 3-terminal actuator for flexible wiring
- Replaceable microswitch design
- Adjustable height with removable middle ring
- Polycarbonate lens for high optical clarity
- Durable construction for frequent use
- Easy installation with mounting nut
- Suitable for arcade and control panel applications
- Stable switching performance under repeated use
- Compatible with low-voltage DC systems
- Secure mounting with standard panel cutout
Specifications
- Operating Voltage (LED): 12V DC
- Switch Type: Microswitch (SPDT, 3 terminals)
- Button Diameter: 60 mm
- Height: 72 mm
- Mounting Hole Diameter: 24 mm
- Material: Polycarbonate lens and plastic body
- Switch Life Cycle: 10,000,000 operations
- Illumination Type: LED
- Contact Configuration: NO/NC/COM
- Weight: 100 g
- Actuator Type: Dome push button
- Installation Method: Panel mount with locking nut
- Adjustable Profile: Yes (removable middle ring)
