Description
Description

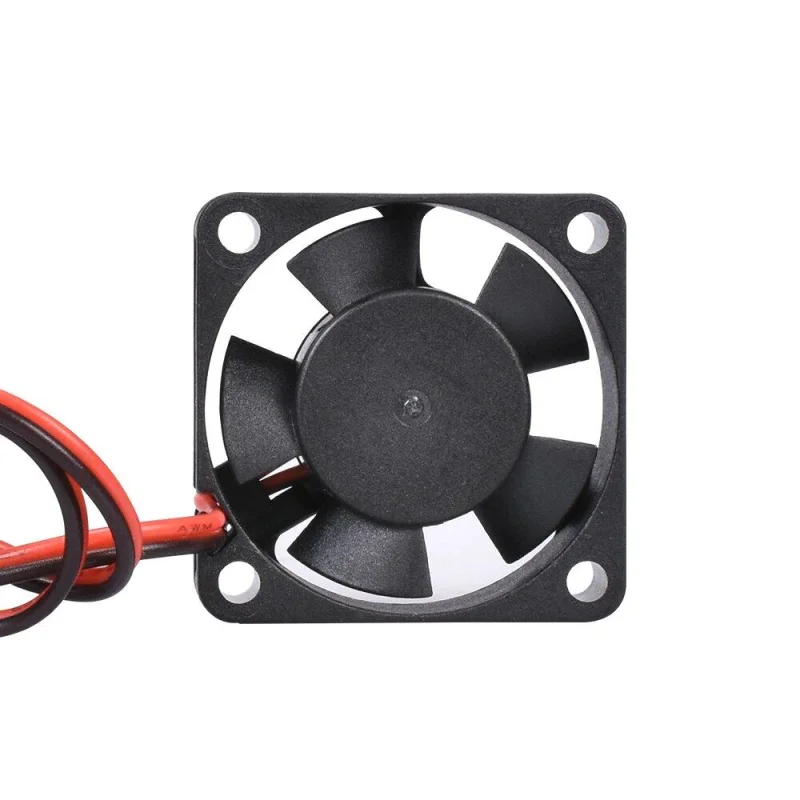

The 5V Brushless Cooling Fan is a compact airflow solution designed for electronic cooling and thermal management applications. It operates at 5V with a rated speed of 6500 RPM and delivers up to 9.8 CFM airflow. Built with a sleeve bearing structure, it ensures stable and quiet operation with low noise levels. The small 303010 mm form factor makes it suitable for tight spaces in embedded systems, 3D printers, and cooling enclosures.
Features
- Brushless DC motor technology
- 5V DC operating voltage
- Rated speed 6500 RPM 10%
- Airflow capacity up to 9.8 CFM
- Low noise level 15 10 dBA
- Sleeve bearing design
- Long operational life up to 35000 hours
- Compact 303010 mm size
- Lightweight construction for embedded systems
- Stable continuous operation
- Suitable for confined cooling spaces
- Low power consumption operation
- Easy integration into electronic enclosures
Specifications
- Operating Voltage: 5V DC
- Rated Current: 0.11 0.02 A
- Rated Speed: 6500 10% RPM
- Air Flow: 9.8 CFM
- Noise Level: 15 10 dBA
- Bearing Type: Sleeve Bearing
- Life Expectancy: 35000 hours
- Dimensions: 30 30 10 mm
- Motor Type: Brushless DC
- Application: Electronic cooling systems
Links
- 30 x 30 x 10mm High Quality DC Fan Datasheet
- 5V Brushless Cooling Fan 3D Model
Tutorials
- Mini dc fan | Dc fan 3010mm 5v for 3d printer | mini 3d printer fan unboxing | mini cpu dc fan
