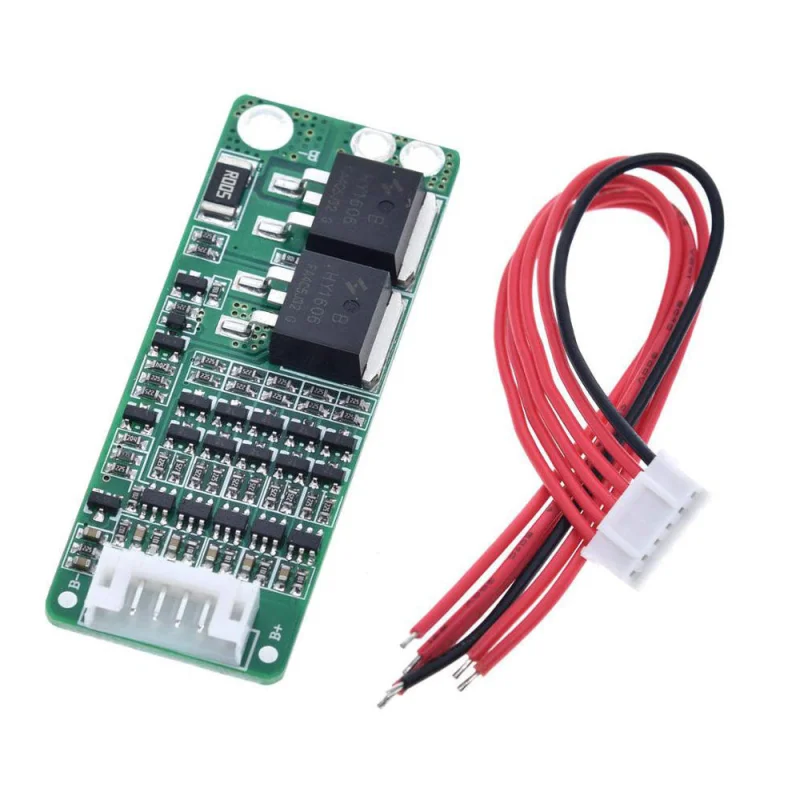

5S 18.5V 10A Li-Ion Battery Protection Board (BMS) for 18650 Batteries

Description

Description

The 5S 18.5V 10A Li-Ion Battery Protection Board (BMS) is designed to provide advanced protection and battery management for 5-cell lithium-ion battery packs built with 18650 cells. It safeguards the battery during charging and discharging by monitoring cell voltages and current levels, helping prevent overcharging, over-discharging, overcurrent, and short-circuit conditions. With low power consumption, low internal resistance, and support for continuous currents up to 10A, this BMS is suitable for battery-powered electronics, robotics, portable power systems, DIY battery packs, and energy storage applications.

Features

• Designed for 5S lithium-ion battery packs

• Compatible with 18650 lithium-ion cells

• 18.5V nominal battery system support

• Continuous discharge current up to 10A

• Maximum discharge current up to 15A

• Peak instantaneous current up to 35A

• Overcharge protection for each cell

• Over-discharge protection for each cell

• Short-circuit protection function

• Low power consumption design

• Low internal resistance construction

• Stable battery monitoring and protection

• Suitable for DIY battery pack assembly

• Improves battery safety and operational life

Specifications

• Model: BW-6022-5S
• Supply voltage: 21VDC
• Cell overcharge protection: 4.18 ~ 4.22V
• Cell discharge protection: 2.75 ~ 2.85V
• Continuous current: 10A
• Maximum current: 15A (when using heat sinks)
• Maximum instantaneous current: 35A
• Working temperature: -40 ~ +50C
• Control circuit current consumption: less than 30uA
• Own resistance: 5m
• Short circuit protection: yes
• Over-discharge protection: Yes
• Overcharge protection: Yes
